Wuhan Chenyun Technology Co., Ltd

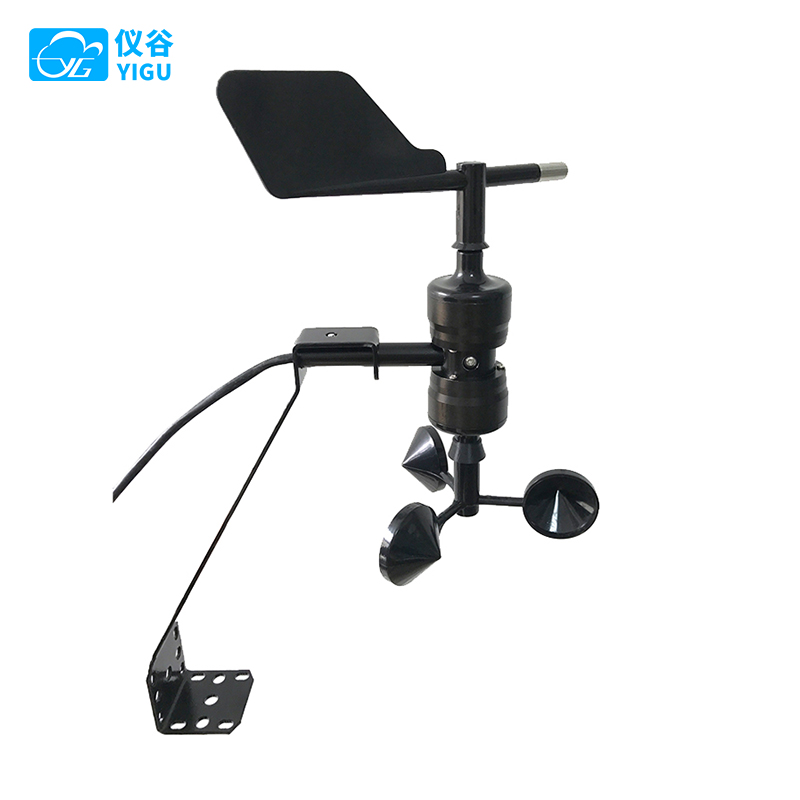

Product Name: Integrated Wind Speed and Direction Sensor
Model: YGC-FSFX-S
Material: Imported ABS engineering plastic+aluminum alloy
Supply voltage: 5V, 12V, 24V
Output signals: RS485, RS232, 4-20mA, 0-20mA, 0-2.5V
Product Introduction
The YGC-FSFX-S Integrated Wind Speed and Direction Sensor is a highly integrated product combining wind speed and direction sensors. It is assembled using precision-machined aluminum alloy components, offering high strength and easier installation.
The wind speed component adopts the traditional three-cup structure, with wind cups made of imported ABS material for high strength and excellent starting performance. Its precision signal processing unit provides various signal outputs based on user requirements, featuring a wide measurement range, good linearity, easy observation, and reliable stability.
The wind direction component is a professional meteorological instrument designed to measure horizontal wind direction. It uses a precision angular sensor and a low-inertia wind vane for responsive wind direction measurement. When the wind direction changes, the vane’s rotating shaft drives the sensor's magnet, and the angular sensor detects the change in magnetic polarity, generating
a corresponding electrical signal output. It offers good linearity, high accuracy, no blind spots, easy observation, and stable, reliable performance.
This product is widely applicable in fields such as meteorology, marine environments, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation.
Product Model Selection and Technical Specifications
|
Measurement Range
|
Wind Speed |
□ 0～45m/s (current or voltage output) |
|
□ 0～70m/s (pulse, RS485, RS232 output) |
||
|
☑ Other |
||
|
Wind Direction |
0-359° |
|
|
Power Supply |
□ DC 5V □ DC 9-30V |
|
|
□ Other |
||
|
Output Signal |
Wind Speed Pulse |
□ Pulse: High 5V, Low 0V level signal |
|
(Default NPNR □PNP) |
||
|
Current |
□ 4～20mA □ 0～20mA |
|
|
Voltage |
□ 0～2.5V □ 0～5V □ 1～5V |
|
|
Serial Port |
□ RS485（□ Default Modbus □ASCII） |
|
|
□ RS232（□ Default Modbus □ASCII） |
||
|
Other |
|
|
|
Cable Length |
□ Standard: 2.5 meters □ Other: |
|
Accuracy: Wind Speed: ±(0.3+0.03V) m/s (V represents the real-time wind speed value), Wind Direction: ±3°
Resolution: Wind Speed: 0.1 m/s, Wind Direction: 1°
Starting Wind Speed: ≤0.5 m/s
Maximum Power Consumption: 0.9 W
Load Capacity:DC12V Power Supply: Current Output Impedance ≤350Ω
DC24V Power Supply: Current Output Impedance ≤900Ω
Voltage Output Impedance ≥1KΩ
Operating Environment: Temperature: -35°C to 60°C
Humidity: ≤100% RH (non-condensing)
Protection Level: IP64
Product Net Weight: 520 g
Packaging Weight: 1120 g (including packaging and sensor cables)
Cable Specifications: Rated Voltage: 300V, 80°C

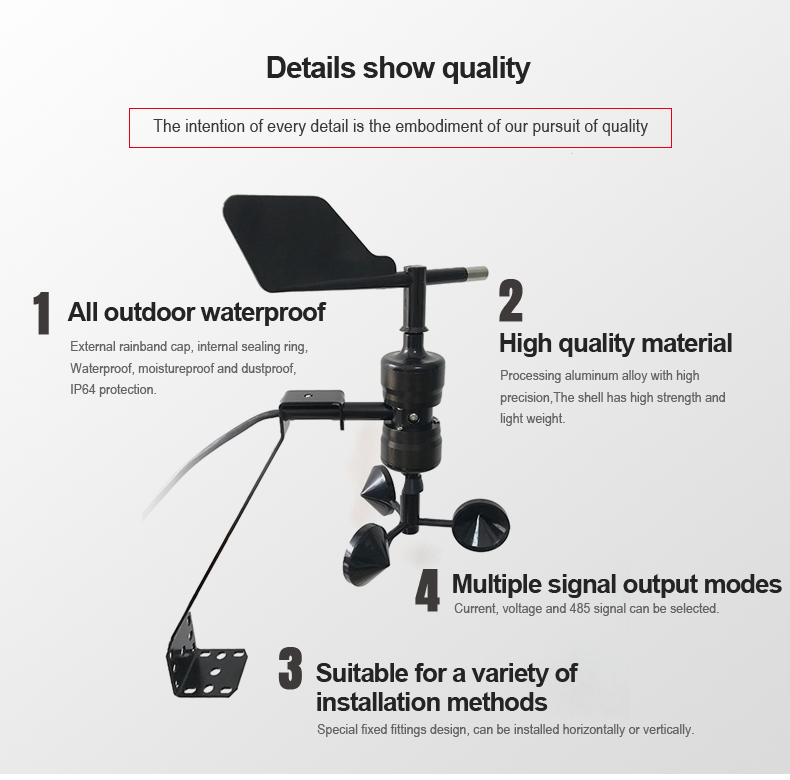

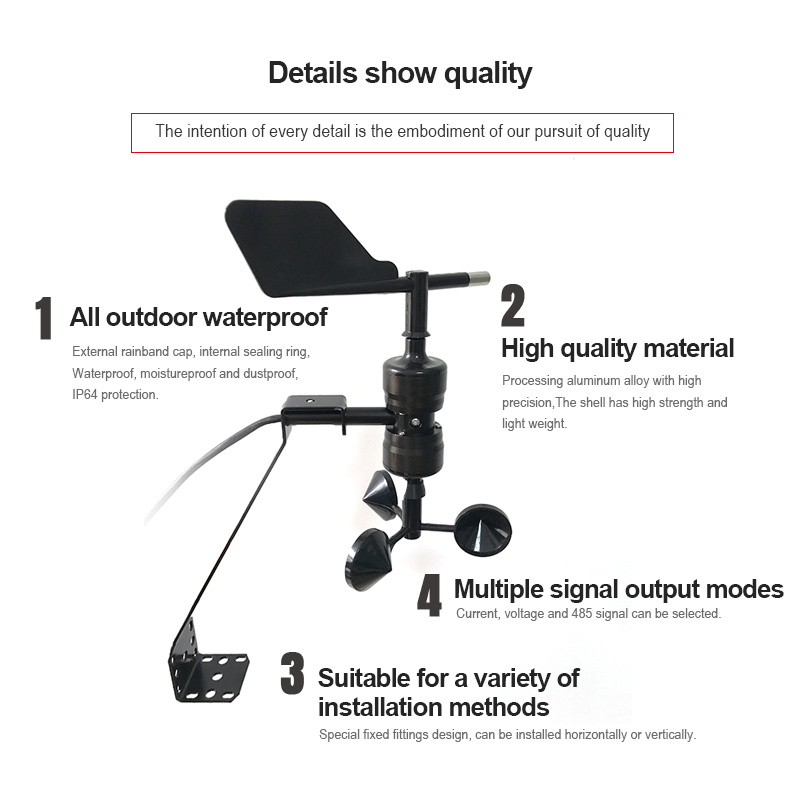

Product Features

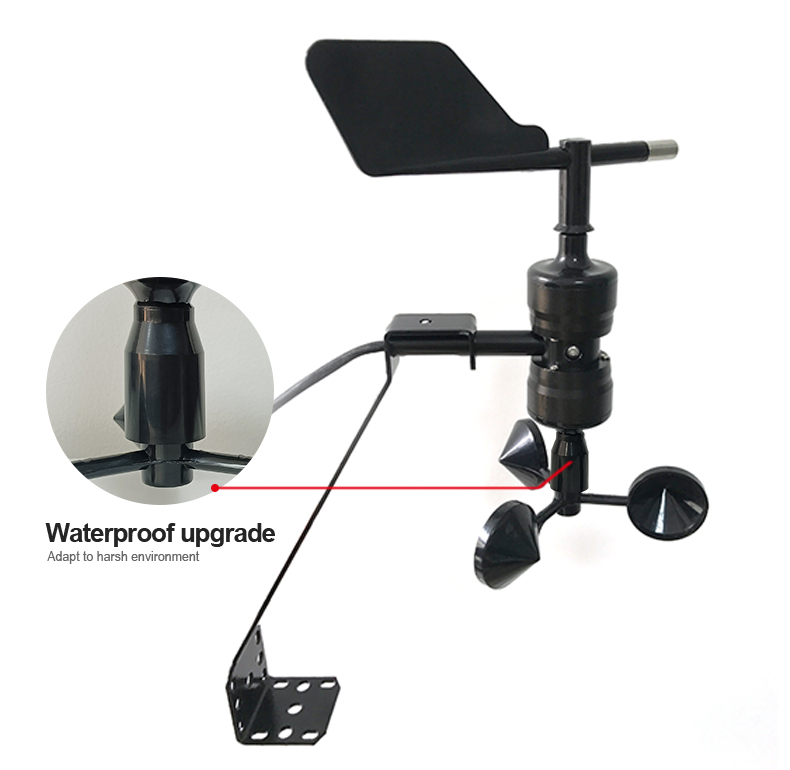

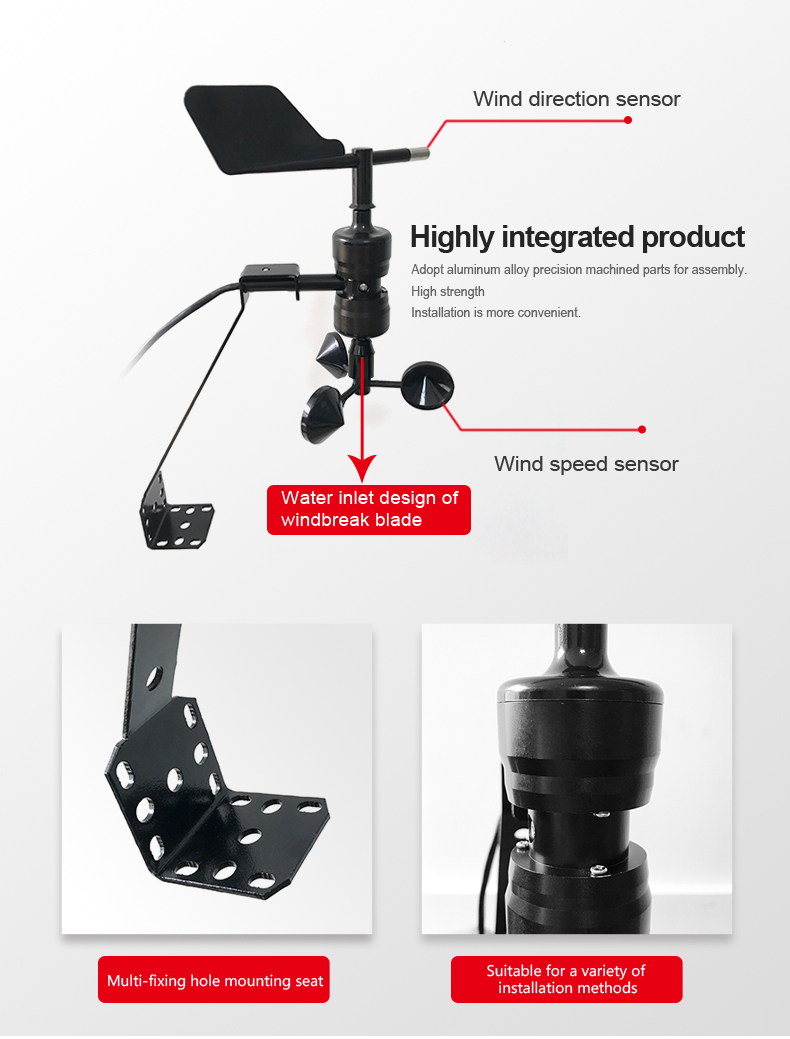

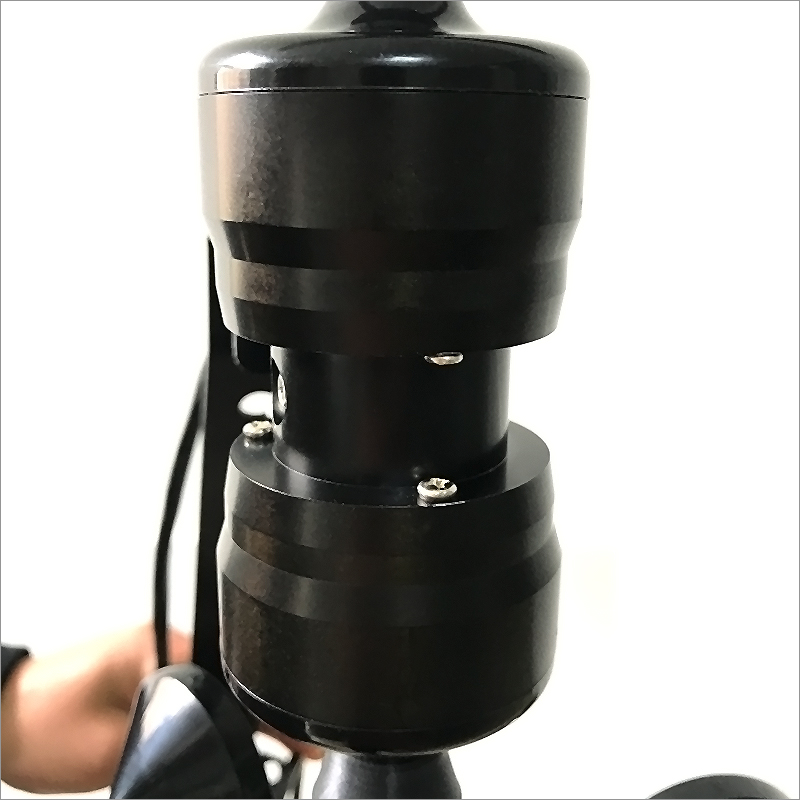

Product Details

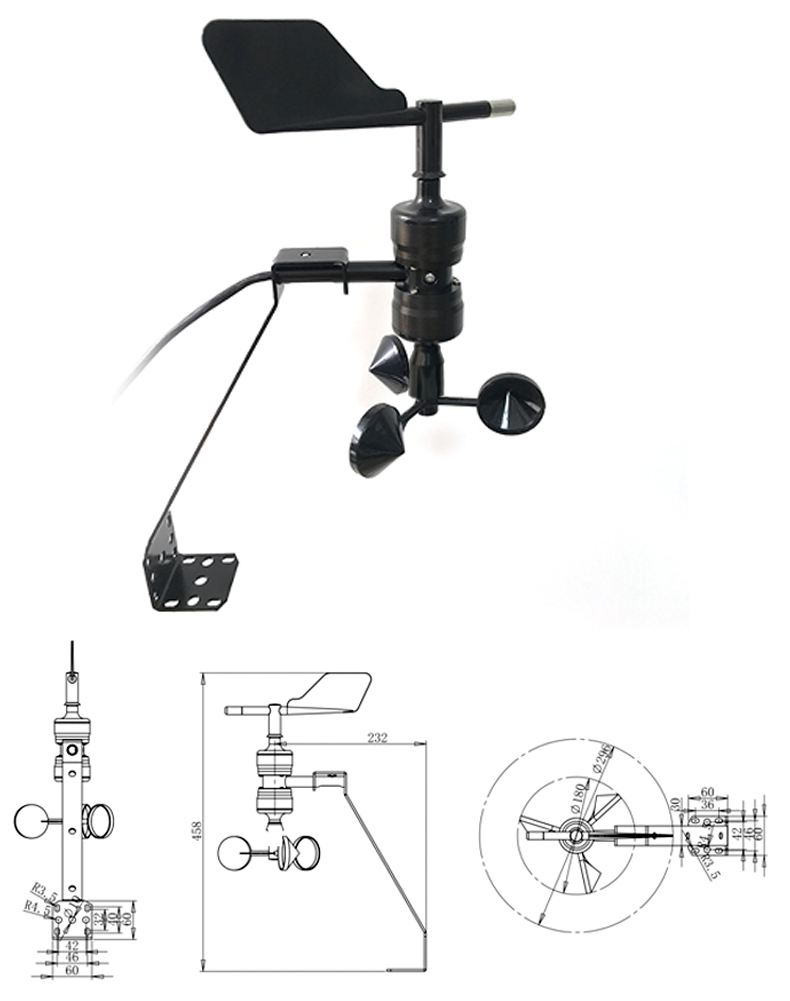

Structural Dimensions

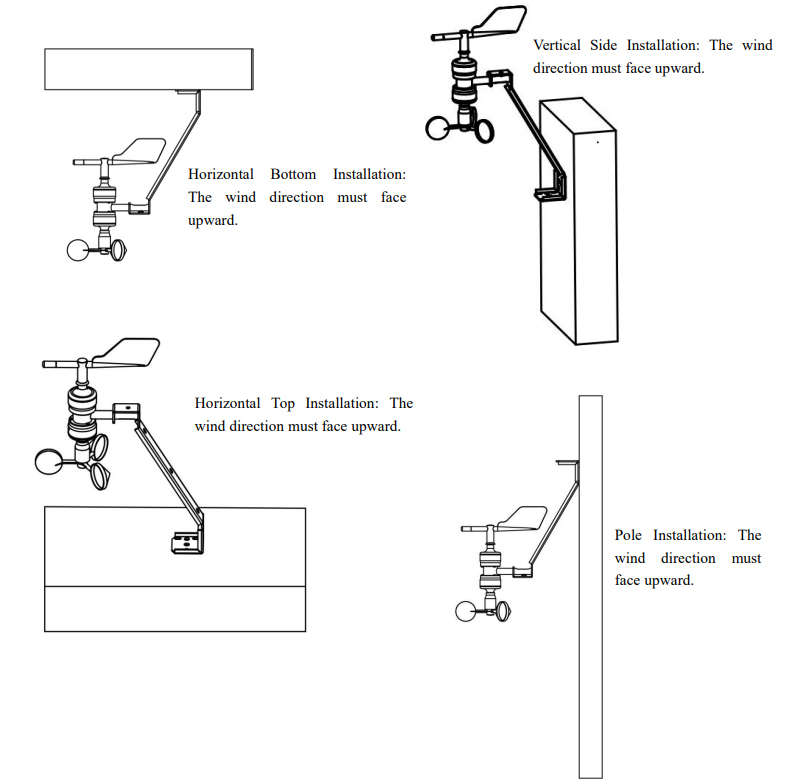

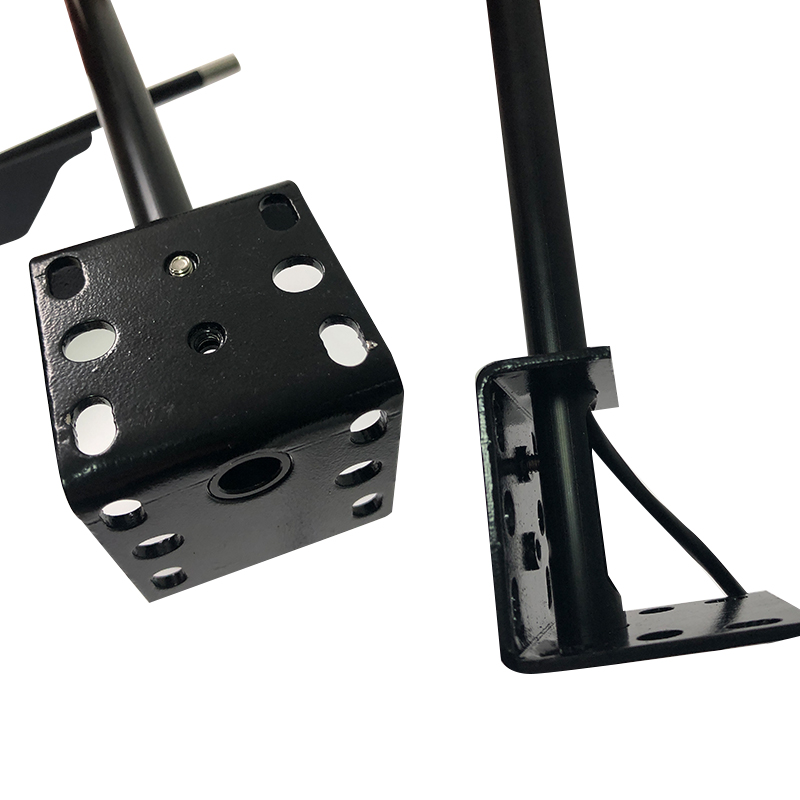

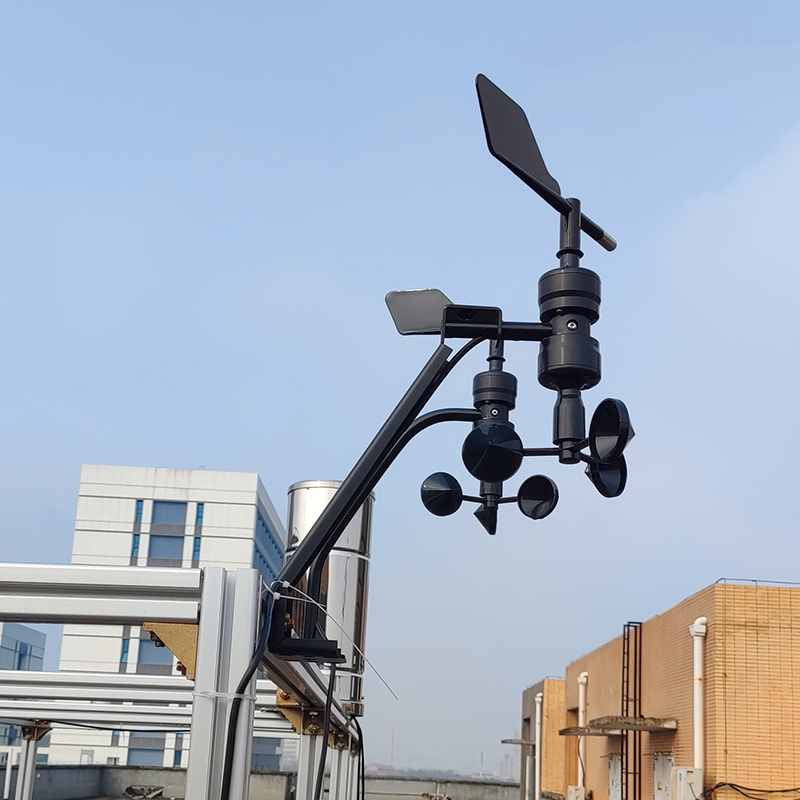

Illustrations of Four Installation Methods
Explanation of Sensor Communication Protocol
I、If you are using a single sensor connected directly to a computer to read data: It is recommended to use the company's proprietary protocol, which displays data intuitively in ASCII format (HEX format is used for sending, non-HEX is used for receiving).
II、If you are interconnecting multiple sensors with a PLC, SCADA system, or programmable data logger: It is recommended to use the standard ModBus-RTU protocol, which uses HEX format for both sending and receiving.
III、If there are no special requirements: The default parameters for the sensor are: Device Address = 1, Baud Rate = 9600, Protocol = ModBus-RTU.
Model Selection Table
|
Model |
Power Supply |
Output |
Description |
|
YGC-FSFX-S |
|
|
Integrated Wind Speed and Direction Sensor |
|
|
5V- |
|
5V Power Supply |
|
KV |
|
9-30V Power Supply |
|
|
|
V |
0-5V |
|
|
V1 |
1-5V |
||
|
V2 |
0-2.5V |
||
|
A1 |
4-20mA |
||
|
A2 |
0-20mA |
||
|
W1 |
RS232 (Default Modbus Protocol, ASCII Protocol Optional) |
||
|
W2 |
RS485 (Default Modbus Protocol, ASCII Protocol Optional) |
||
|
M |
Wind Speed Pulse (Default NPNR Output, PNP Optional) |
||
|
Example: YGC-FSFX-T-5V-W2, an integrated wind speed and direction sensor with 5V power supply and RS485 signal output. |
|||
Appendix
16 directional wind direction map
Wind speed rating table
|
Grade |
Name |
Characteristics of Ground Objects |
Wind Speed (m/s) |
|
0 |
Calm |
Smoke rises vertically, stationary. |
0～0.2 |
|
1 |
Light Air |
Smoke shows wind direction, leaves slightly move. |
0.3～1.5 |
|
2 |
Light Breeze |
Wind felt on the face, leaves move slightly. |
1.6～3.3 |
|
3 |
Gentle Breeze |
Leaves and small twigs constantly move, flags extend, tall grass sways. |
3.4～5.4 |
|
4 |
Moderate Breeze |
Lifts dust and paper, tree branches sway, tall grass moves in waves. |
5.5～7.9 |
|
5 |
Fresh Breeze |
Small trees with leaves sway, inland waters have small waves, tall grass shows clear waves. |
8.0～10.7 |
|
6 |
Strong Breeze |
Large tree branches move, wires whistle, difficult to use an umbrella, tall grass occasionally bends to the ground. |
10.8～13.8 |
|
7 |
High Wind |
Whole trees sway, large branches bend, difficult to walk against the wind. |
13.9～17.l |
|
8 |
Gale |
Small branches break, resistance to walking against the wind becomes very strong. |
17.2～20.7 |
|
9 |
Strong Gale |
Straw houses damaged, roof tiles lifted, large branches break. |
20.8～24.4 |
|
10 |
Storm |
Trees may be uprooted, general buildings damaged. |
24.5～28.4 |
|
11 |
Violent Storm |
Large trees uprooted, general buildings severely damaged. |
28.5～32.6 |
|
12 |
Hurricane |
Rare on land, extremely destructive. |
>32.6 |
