Wuhan Chenyun Technology Co., Ltd

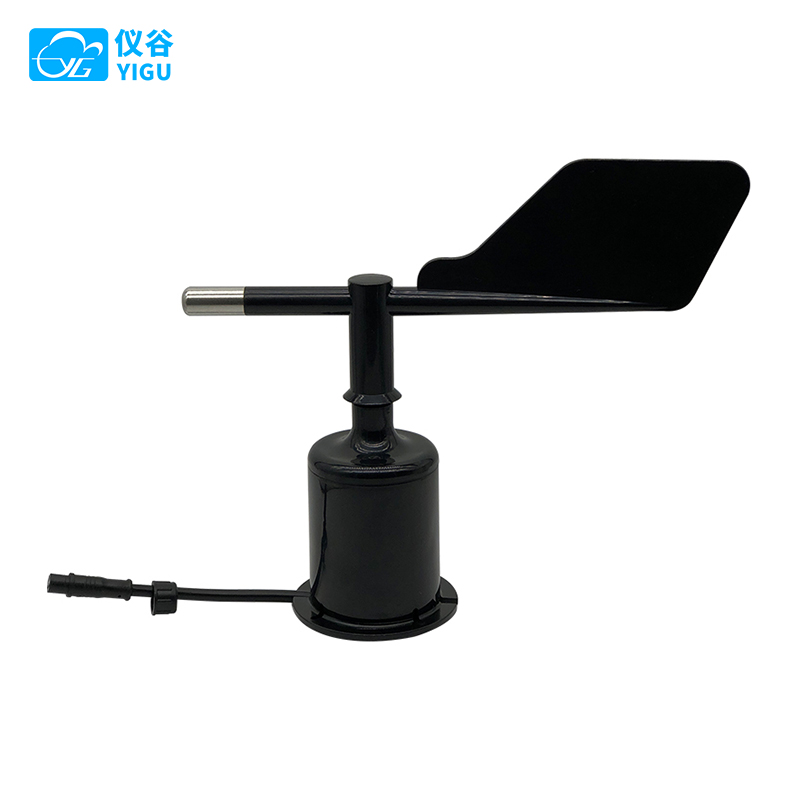

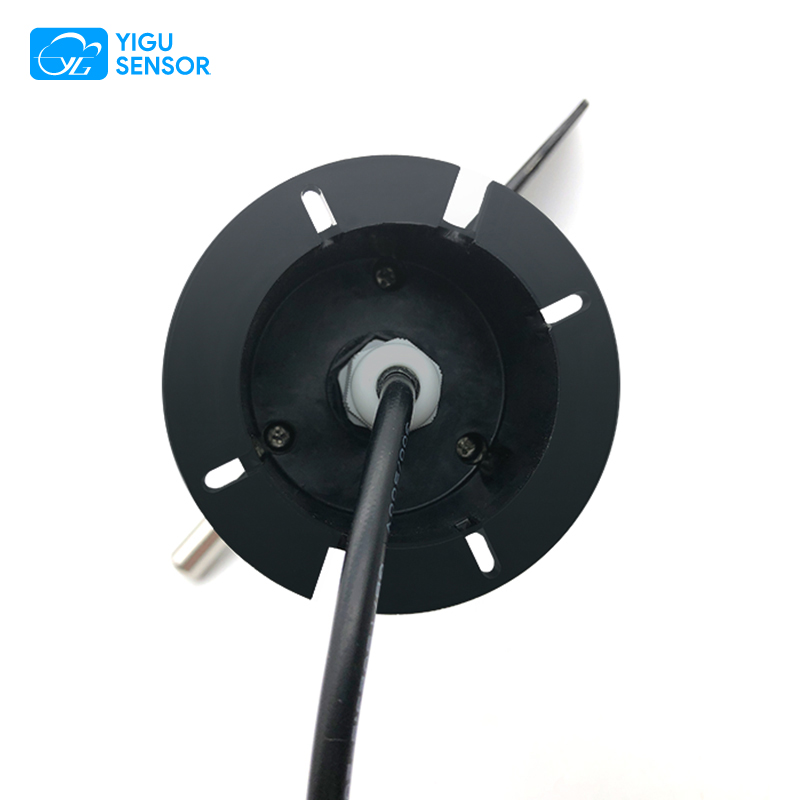

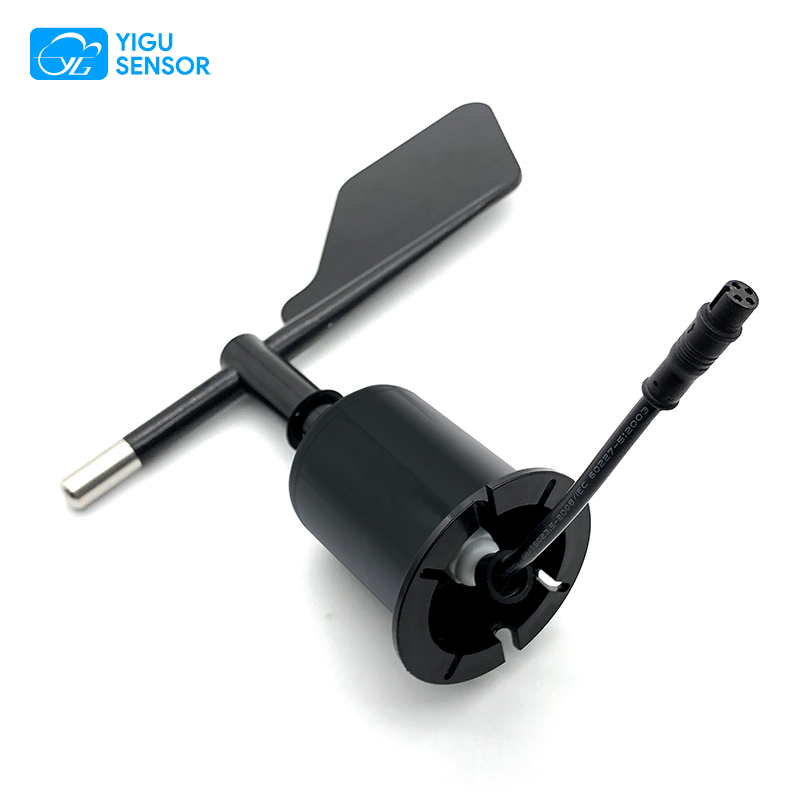

Product Name: Wind Direction Sensor
Model: YGC-FX

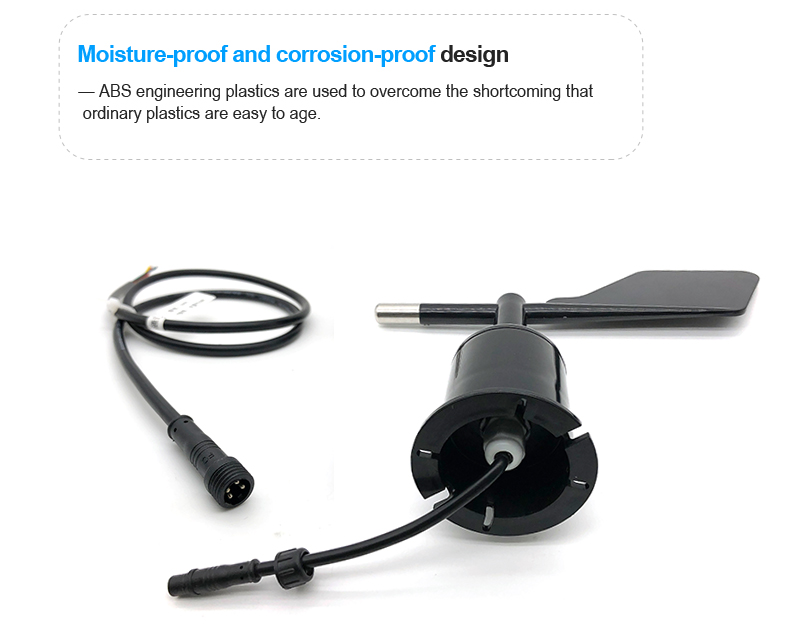

Material: ABS
Weight: 210g (excluding accessories and packaging)
Protection level: IP64
Supply voltage: 5V, 12V, 24
Output signals: RS485, RS232, 4-20mA, 0-20
Product Introduction

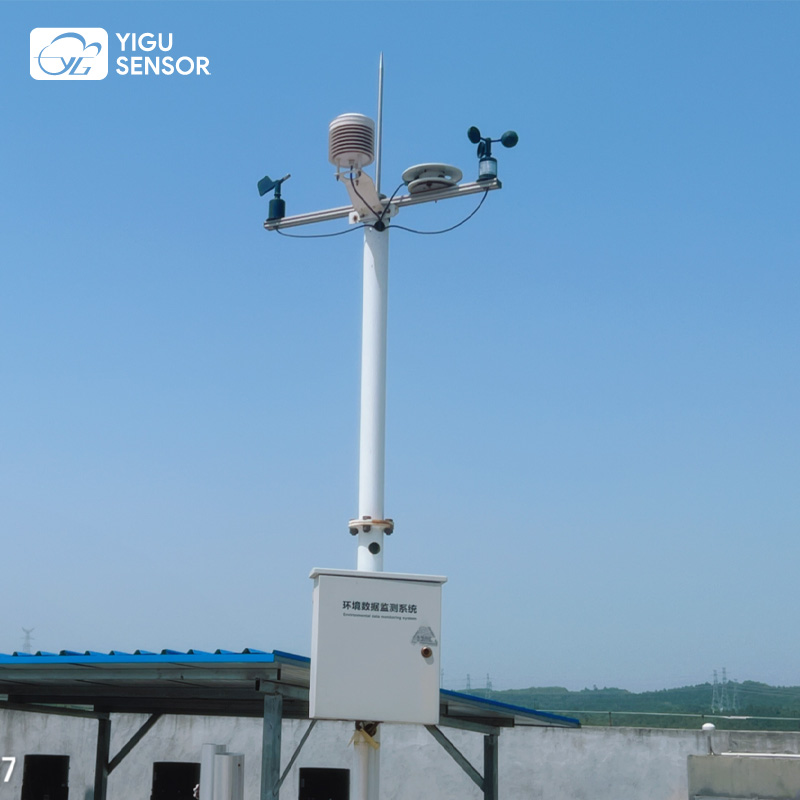

The CYC-FX1 All-Direction 360° Wind Direction Sensor is equipped with a precision angular sensor inside, while the CYC-FX1-8 Eight-Direction Wind Direction Sensor features four optocouplers for directional determination. It is designed with a low-inertia ABS wind vane to respond to wind direction changes, providing excellent dynamic performance. This product offers advantages such as good linearity, high precision, no dead angles, strong lightning resistance, easy observation, and reliable stability. It is widely applicable in fields such as meteorology, marine environments, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation.
Product Model Selection and Technical Parameters
|
Measurement Range
|
□ Eight-Direction（0-7） N，NE，E，SE，S ，SW，W，NW |
|
|
□ 0-359°All-Direction |
||
|
□ Other |
||
|
Power Supply |
□ DC 5V □ DC 9-30V |
|
|
□ Other |
||
|
Output Signal
|
Current |
□ 4～20mA □ 0～20mA |
|
Voltage |
□ 0～2.5V □ 0～5V □ 1～5V |
|
|
Serial Port |
□ RS485（□Default Modbus □ASCII） |
|
|
□ RS232（□Default Modbus □ASCII） |
||
|
Other |
|
|
|

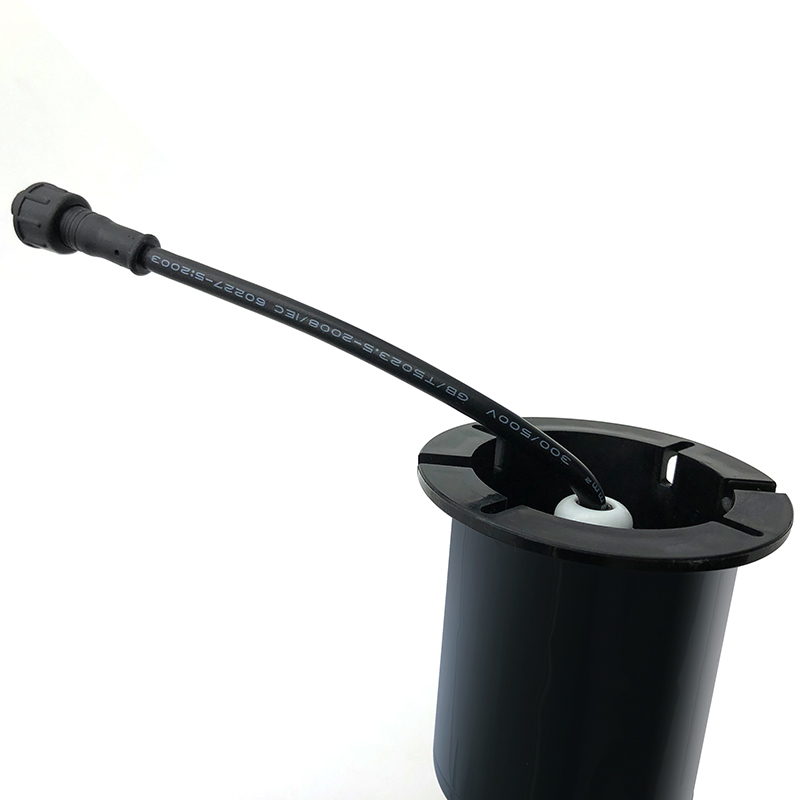

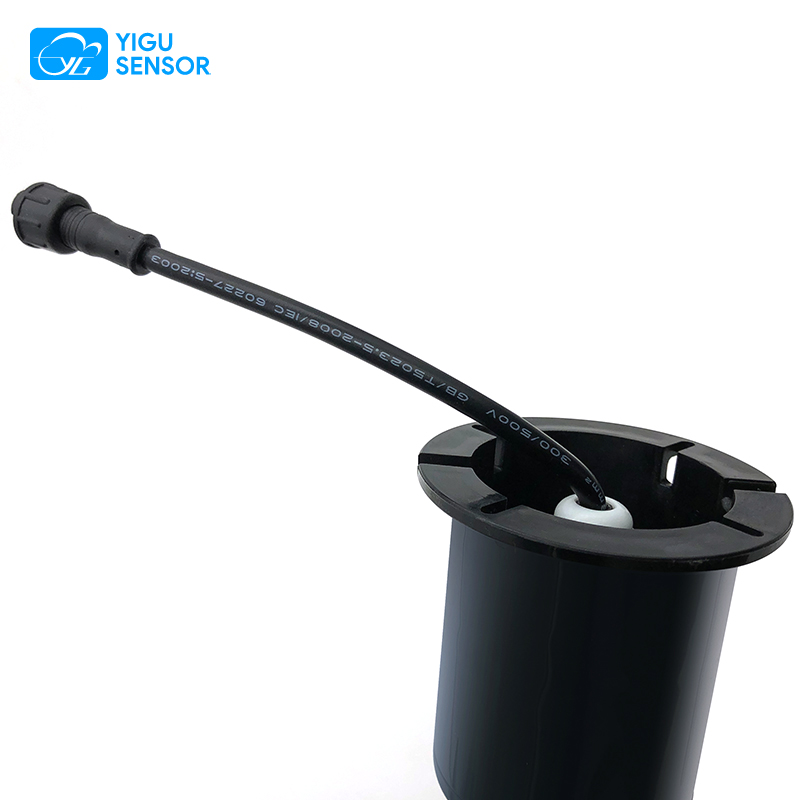

Cable Length |

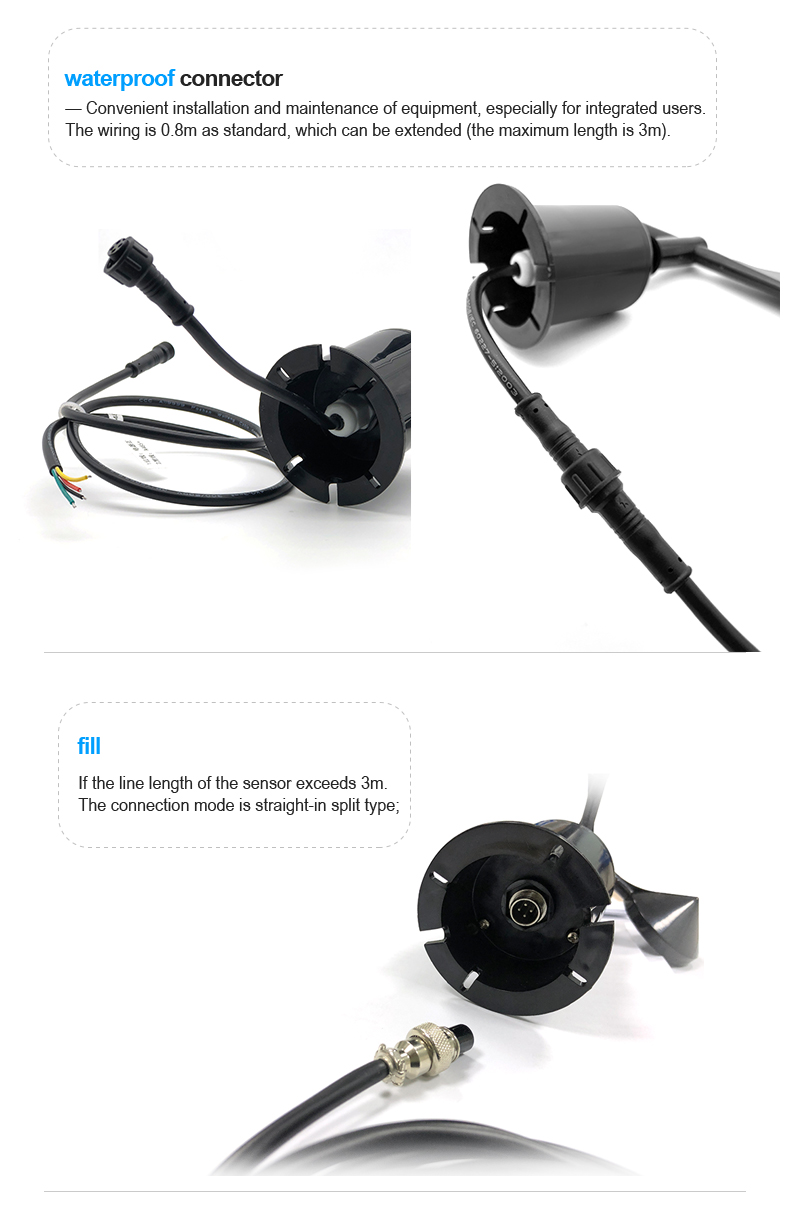

□ Standard: 0.8 meters □ Other: |
|
Accuracy: Eight-Direction: ±1 Direction; All-Direction: ±3°
esolution: Eight-Direction: 1 Direction; All-Direction: 1°
Starting Wind Speed: ≤0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC12V Power Supply, Current Output Impedance ≤350Ω
DC24V Power Supply, Current Output Impedance ≤900Ω
Voltage Output Impedance ≥1KΩ
Operating Environment: Temperature: -35℃～60℃
Humidity: ≤100%RH without condensation
Protection Level: IP64
Net Weight: 150g
Packing Weight: 516g (including packaging and sensor cable)
Cable Specification: Rated Voltage: 300V 80℃

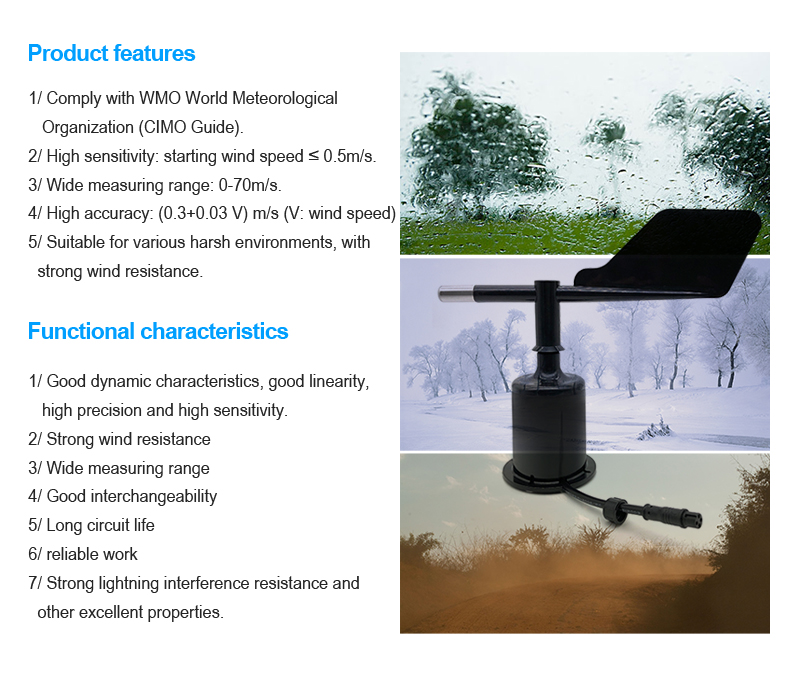

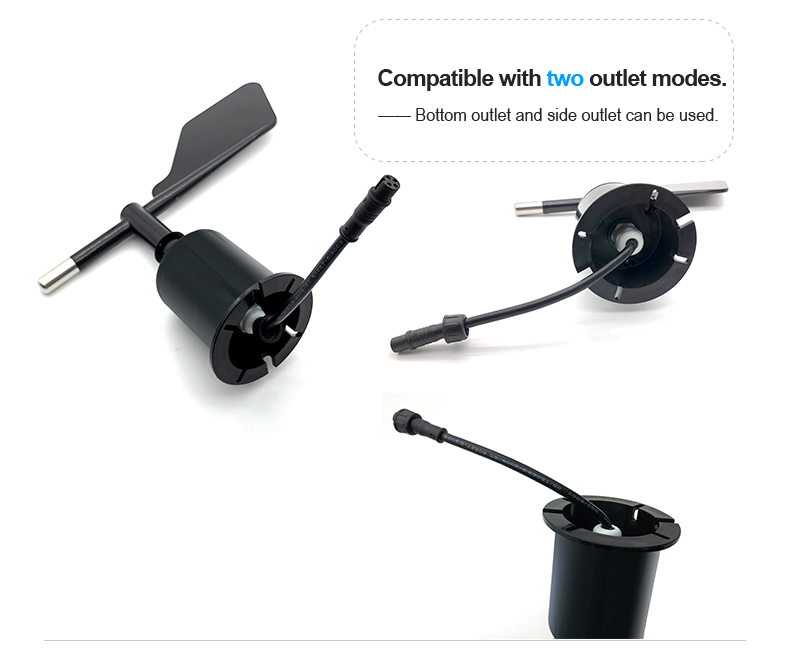

Product Features

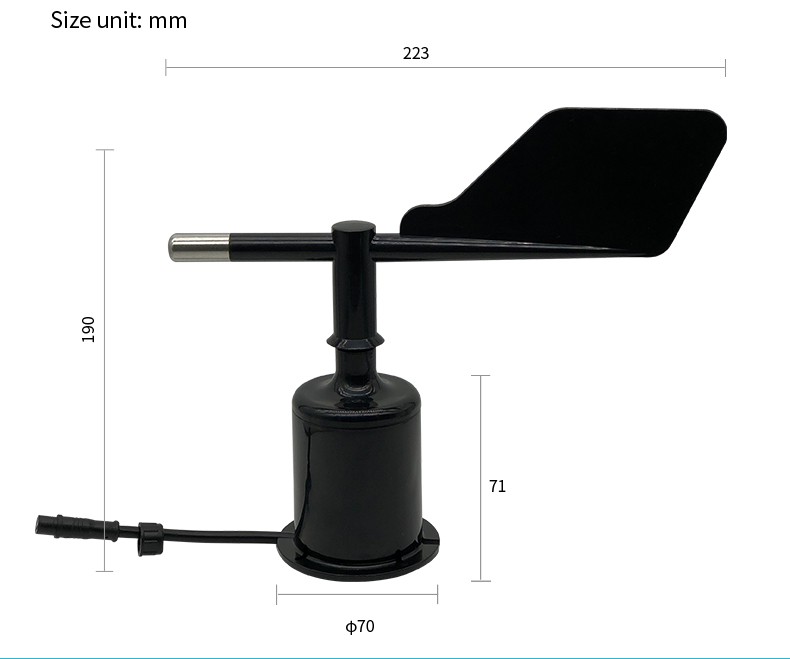

Product Size
