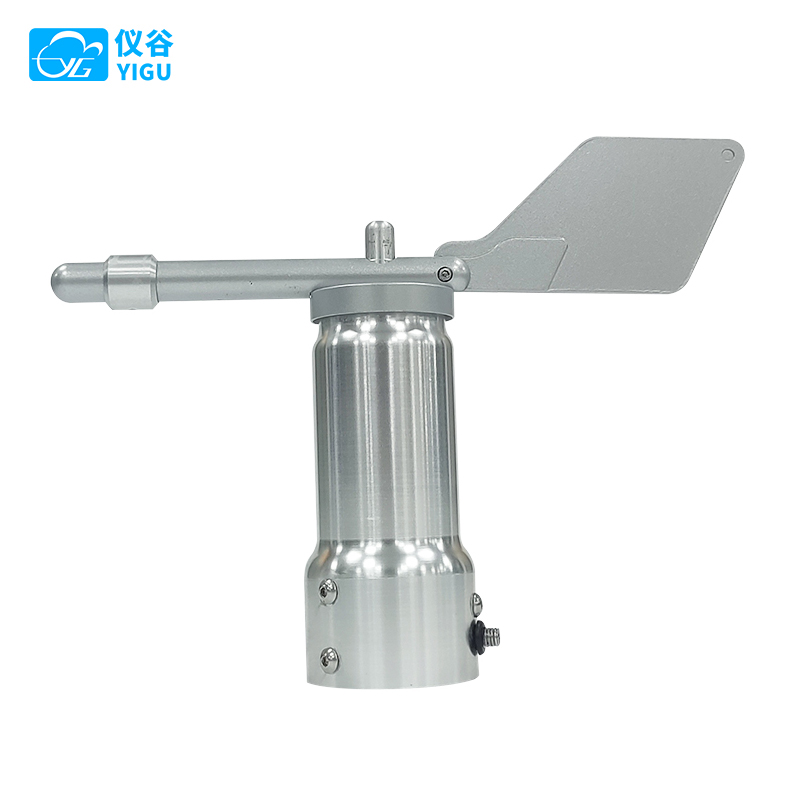

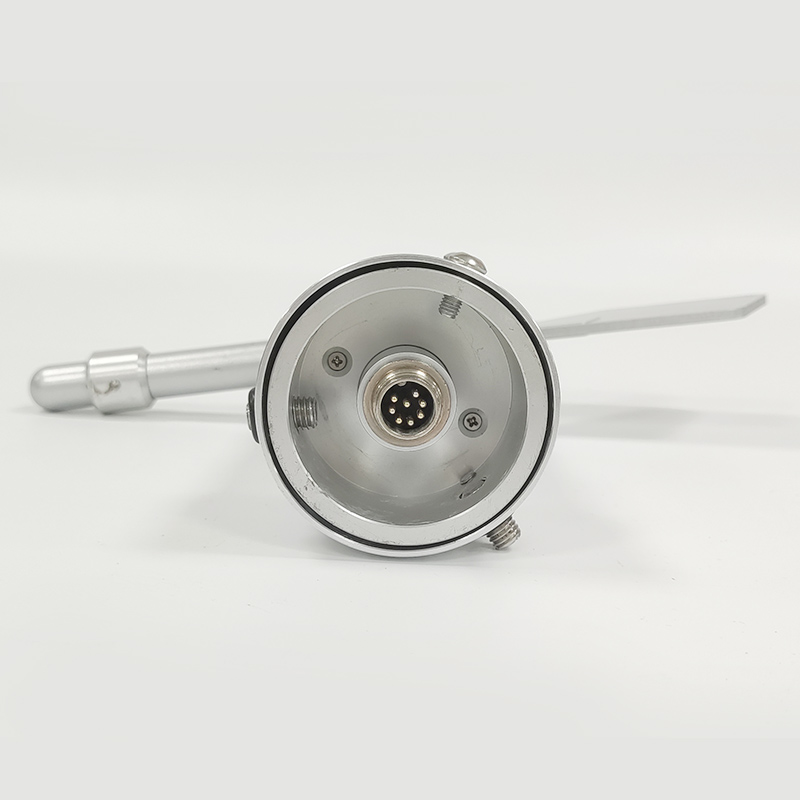

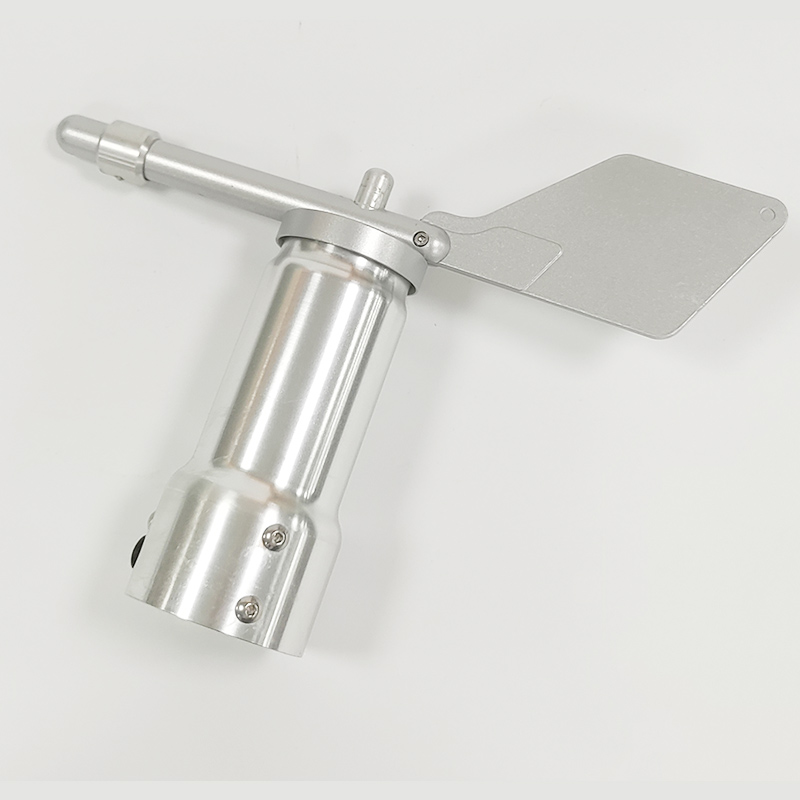

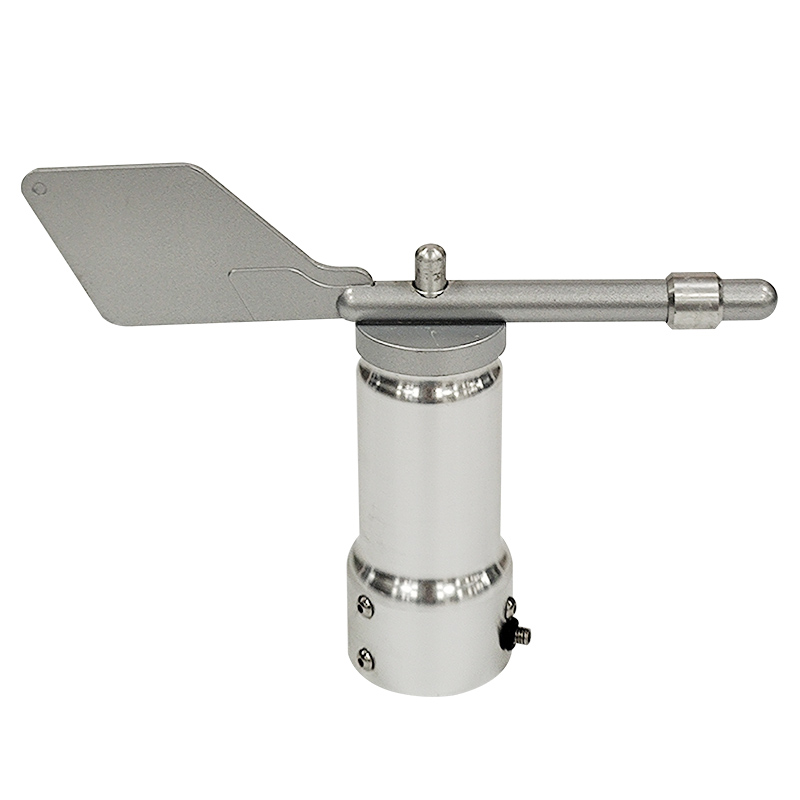

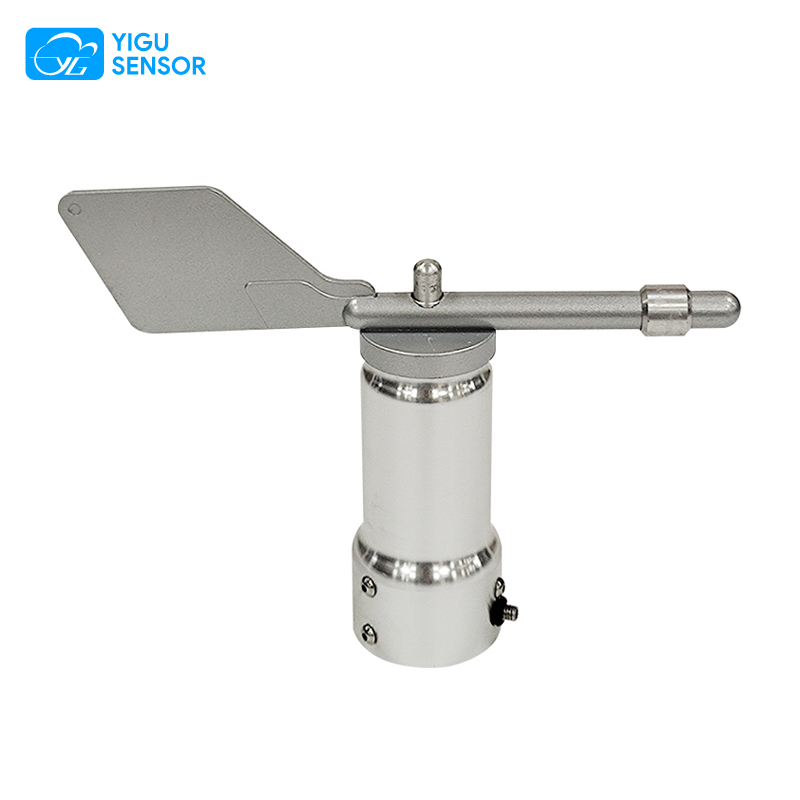

YGC-FX10 Heated Wind Direction Sensor 01-YIGU Sensor.jpg

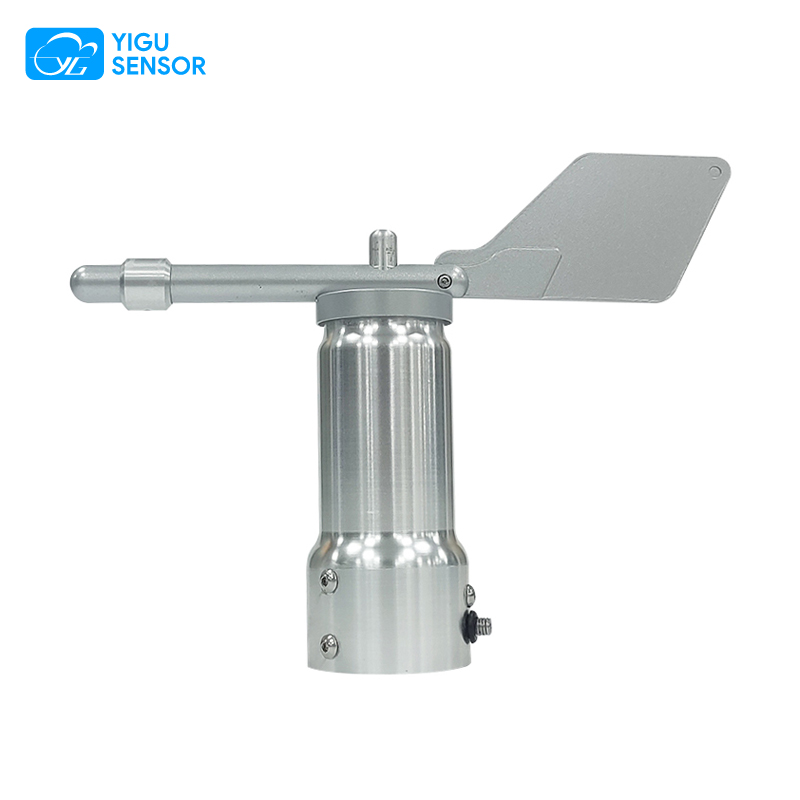

YGC-FX10 Heated Wind Direction Sensor 02-YIGU Sensor.jpg

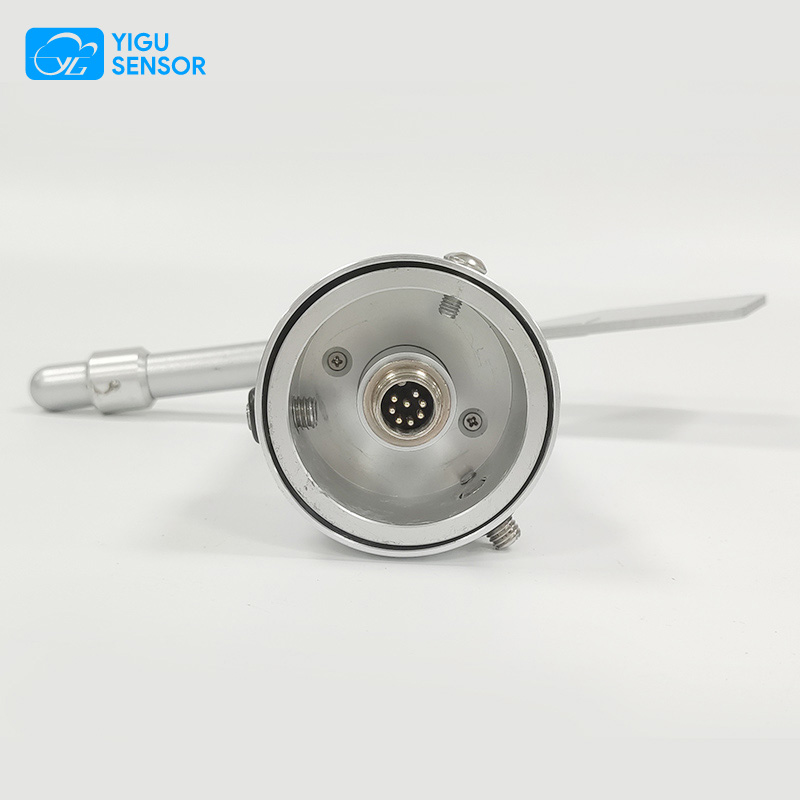

YGC-FX10 Heated Wind Direction Sensor 03-YIGU Sensor.jpg

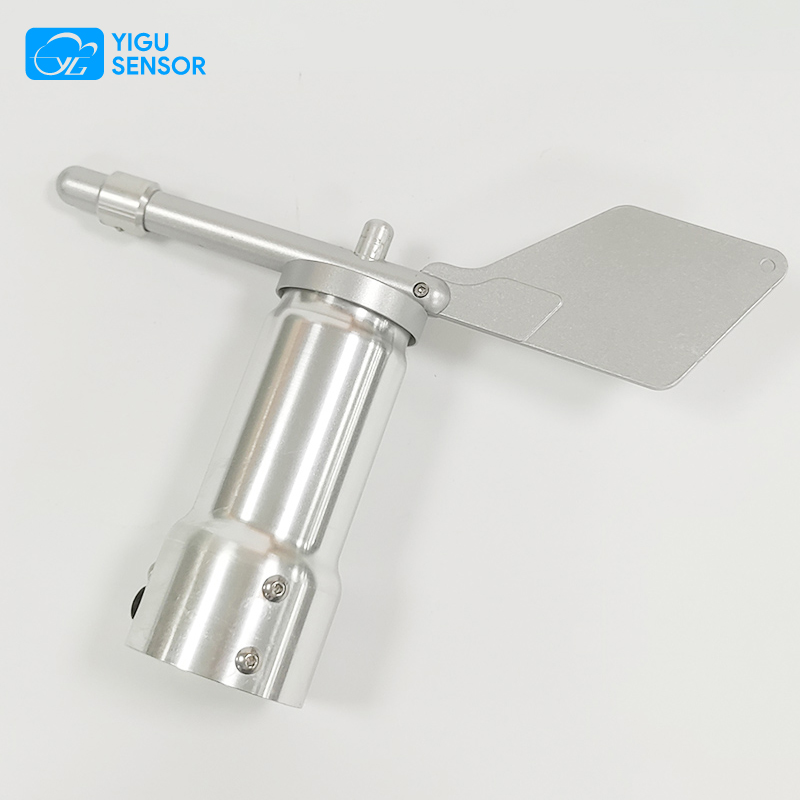

YGC-FX10 Heated Wind Direction Sensor 04-YIGU Sensor.jpg

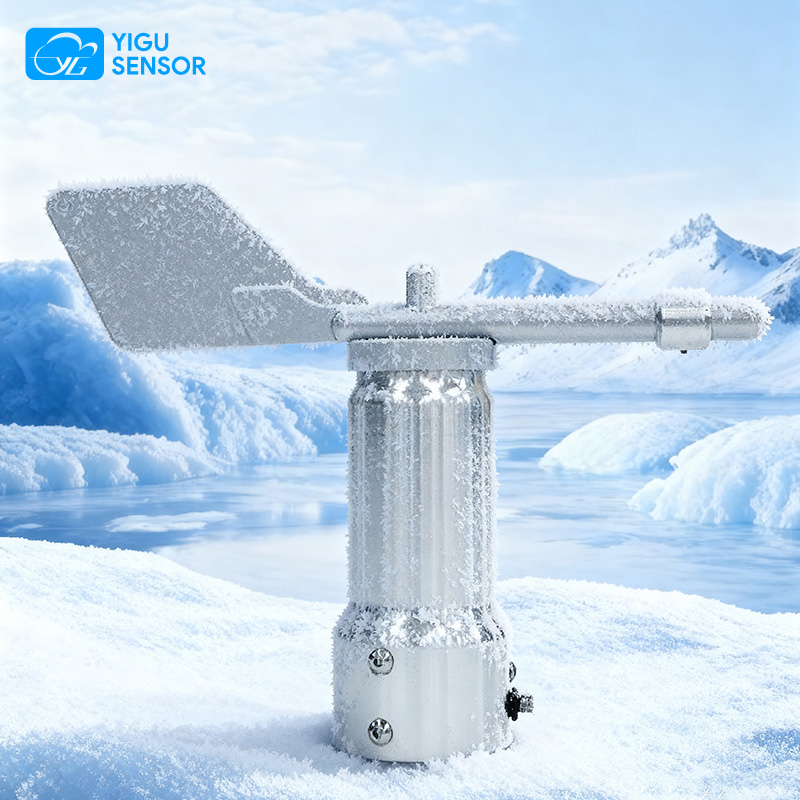

YGC-FX10 Heated Wind Direction Sensor 05-YIGU Sensor.jpg
YGC-FX10 Heated Wind Direction Sensor
YGC-FX10 Heated Wind Direction Sensor RS485 0-359°. Withstands heavy dust, high humidity, salt spray, extreme cold, storms, hail; stable in extreme climates.

WhatsApp: +86 15271247832
Description

YGC-FX10 Heated Wind Direction Sensor
RS485 Output, 0~359°

Product Introduction

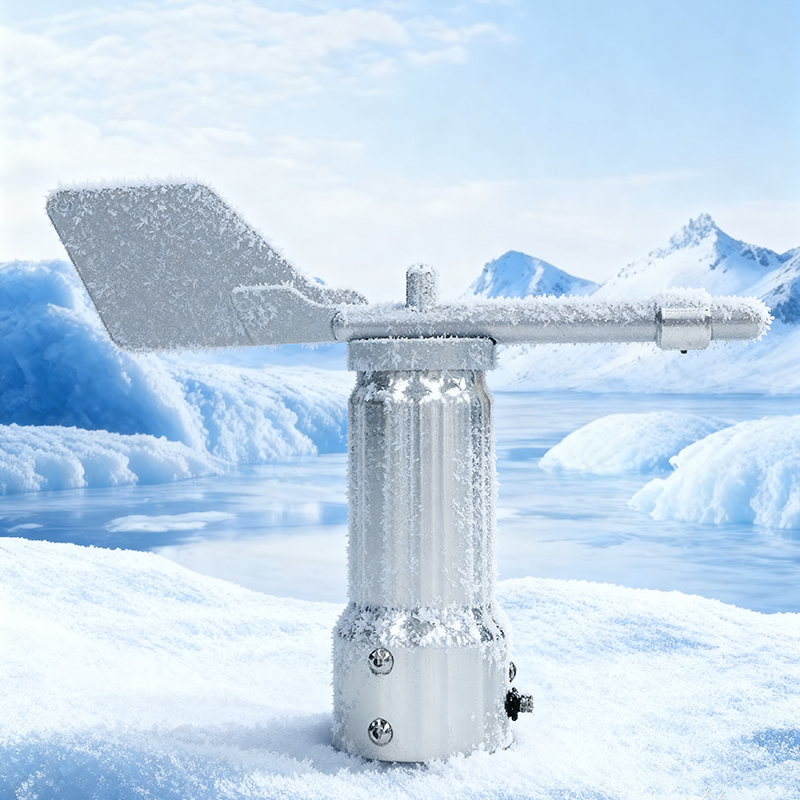

YGC-FX10 Heated Wind Direction Sensor It can measure real-time wind speed and directly convert it into a linear output signal. The wind direction vane has a built-in heating component and adopts a special sealed bearing. The all-metal body, treated with a special process, features high UV resistance and corrosion resistance. It has strong resistance to damage from extreme weather conditions such as heavy dust, high humidity, high salt spray, extreme cold, storms or hailstorms, and can operate stably under extreme climatic conditions.



Technical Parameters


Parameter Specification
Measurement Range □ 0~359°   □ Others
Power Supply □ DC24V     □ Others
Output Signal Current: □ 4~20mA □ 0~20mA
Voltage: □ 0~2.5V □ 0~5V □ 1~5V
Serial: □ RS485 (Default Modbus) □ Others
Cable Length □ Standard: 0.8m        □ Others
Accuracy ±3°
Resolution 1°
Starting Wind Speed ≤0.8m/s
Power Consumption <0.48W when not heating, 120W when heating
Heating Temperature Setting Start heating when ambient temperature is less than 8℃;
Stop heating when ambient temperature is higher than 13℃;
Load Capacity When powered by DC24V, impedance for current output ≤900Ω;
Impedance for voltage output ≥1kΩ;
Operating Environment Temperature: -40℃~70℃;
Humidity ≤100%RH without condensation;
Protection Class IP65
Cable Rating Rated Voltage: 300W 80℃
💡Note: □ indicates an optional item.



Product Features

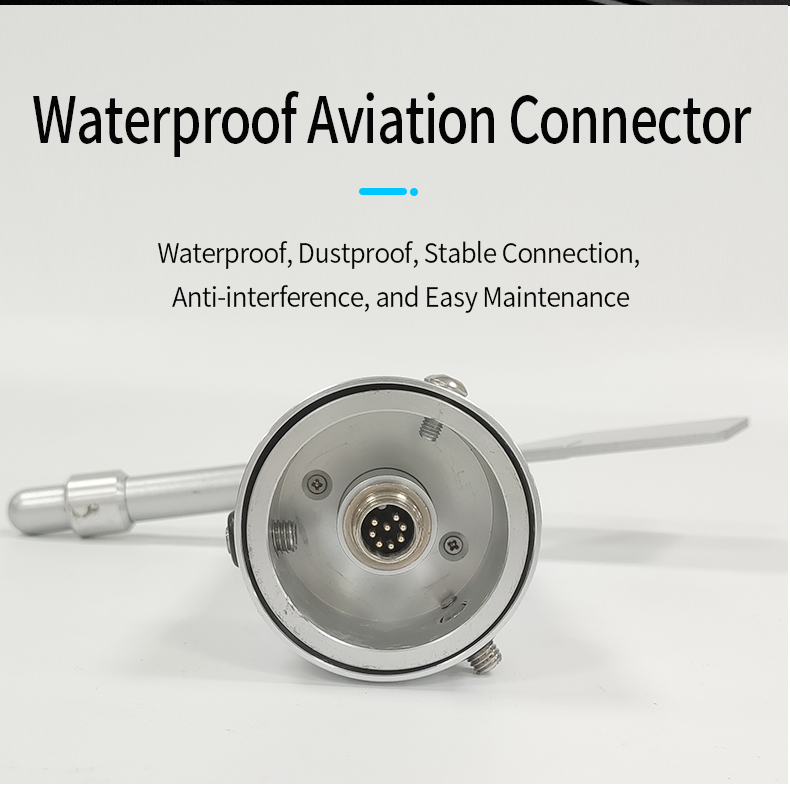

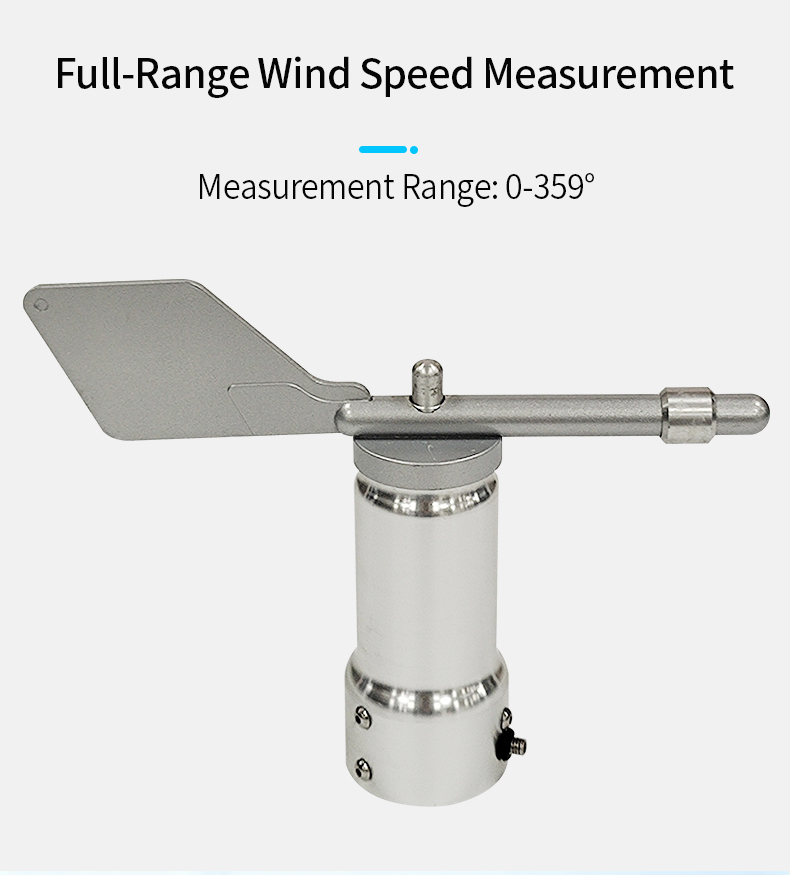

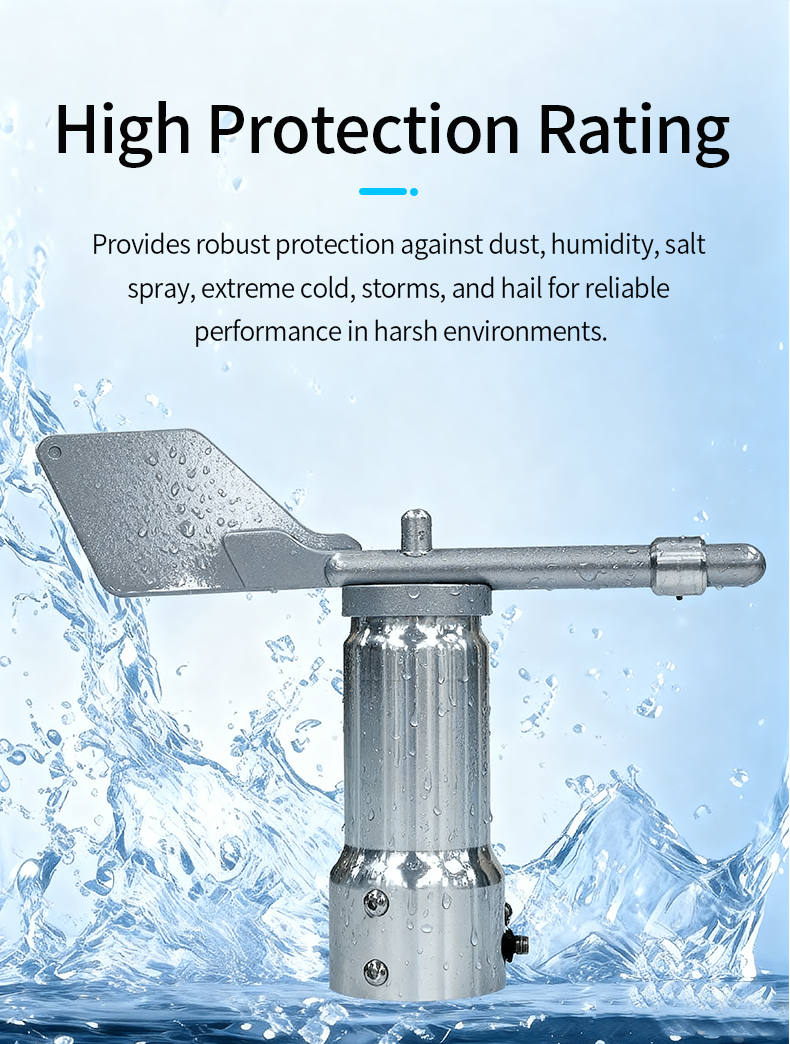

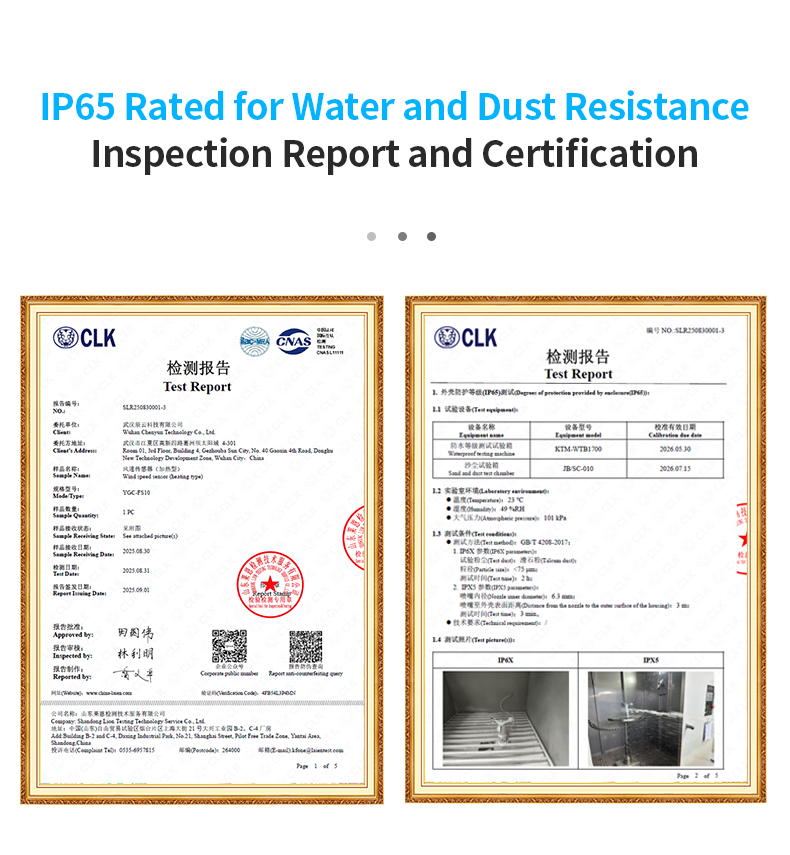

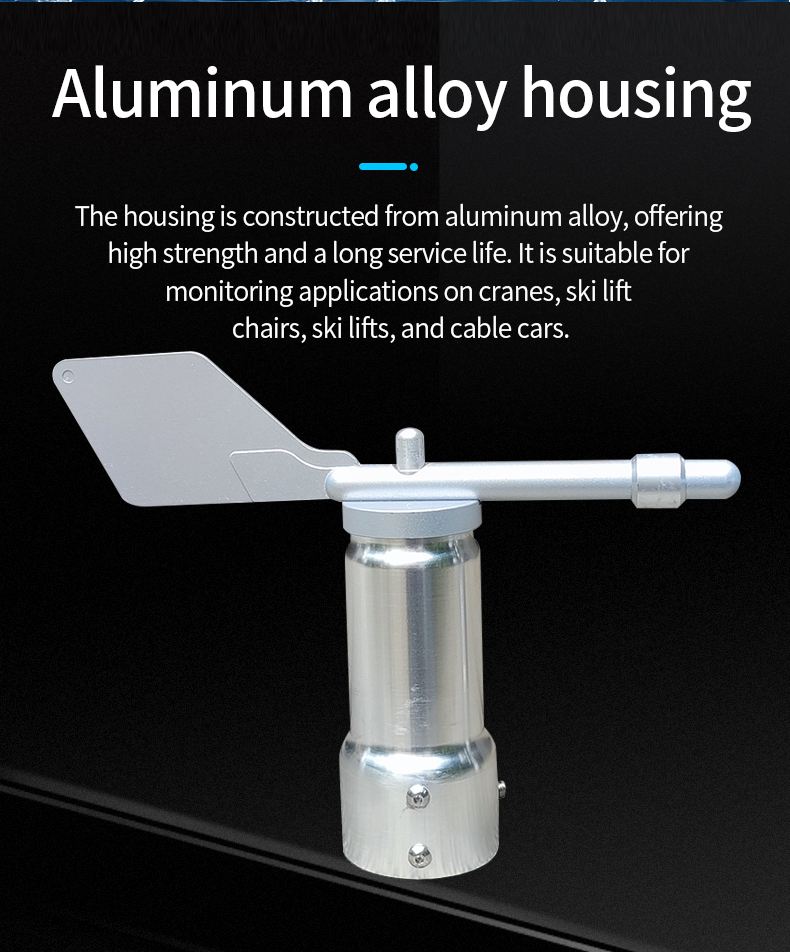

YGC-FX10加热型风向传感器-英文版_02.jpg YGC-FX10加热型风向传感器-英文版_03.jpg YGC-FX10加热型风向传感器-英文版_04.jpg YGC-FX10加热型风向传感器-英文版_05.jpg YGC-FX10加热型风向传感器-英文版_06.jpg

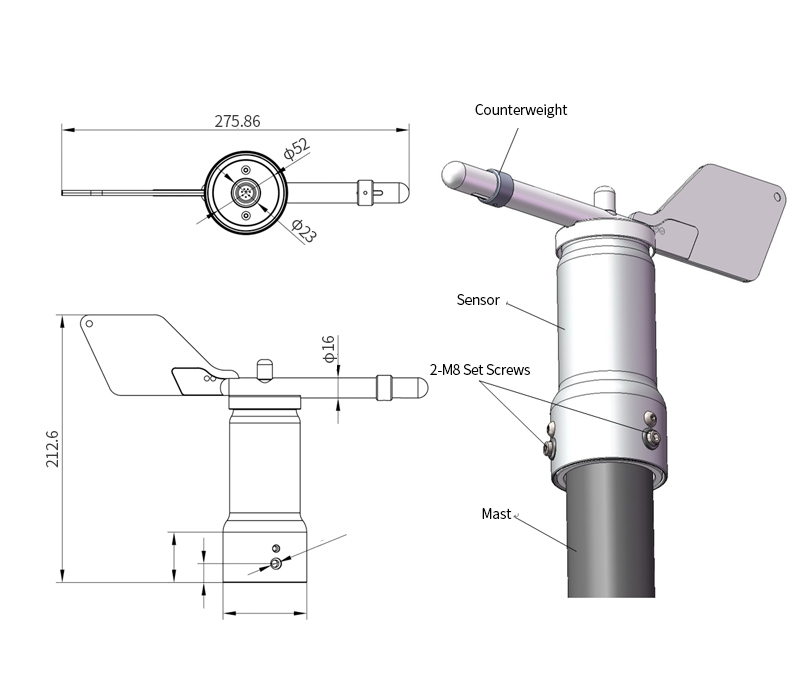

Product Dimensions
