▶ Product Introduction

1. Product Overview

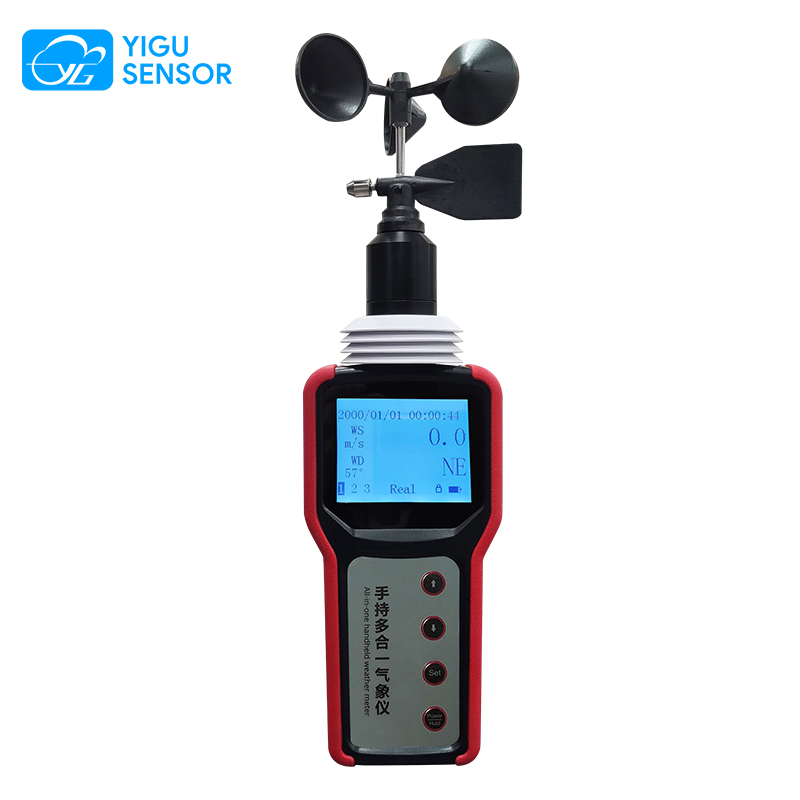

The YGY-QXM All-in-One Handheld Weather Station is a portable, easy‑to‑operate meteorological instrument that integrates 9 essential environmental parameters into a single compact device: wind speed, wind direction, temperature, humidity, atmospheric pressure, wave height, GPS latitude/longitude, and altitude. Designed for professionals who require reliable on‑the‑go data collection, it delivers accurate real‑time measurements while maintaining exceptional ease of use.

2. Key Measurement Capabilities

Equipped with high‑precision sensors and an intelligent processing chip, the YGY-QXM simultaneously measures, records, and stores all parameters with outstanding accuracy. The built‑in wind direction sensor and electronic compass enable direct display of wind direction in both 8 cardinal points and 0–360° precise readings. Users can access real‑time data for each element, as well as view average values and maximum recorded readings, facilitating comprehensive on‑site analysis without the need for additional tools.

3. Smart Alarm & Data Logging

For enhanced safety and operational awareness, the instrument features an audible and visual alarm system that continuously monitors wind speed, atmospheric pressure, temperature, and humidity. When any real‑time reading exceeds the user‑set upper or lower thresholds, the alarm triggers immediately to alert the operator. The built‑in large‑capacity FLASH memory chip stores up to one year’s worth of meteorological records, ensuring that no critical data is lost during extended field campaigns.

4. Power Management & Extended Operation

The YGY-QXM is engineered for long‑duration field use with an intelligent power‑saving design. Depending on the working environment, the device automatically implements energy‑saving measures such as backlight dimming, screen timeout, auto shutdown, and low‑power auto‑off – significantly prolonging battery life. For fixed outdoor installations, optional mounting brackets and a solar power supply system are available, enabling unattended, continuous observation at remote sites over extended periods.

5. Communication & IoT Integration

Data transfer is straightforward via the standard USB port, allowing users to download stored records to a PC using the supplied cable and weather station software for further analysis, report generation, and archiving. For advanced connectivity, the instrument offers optional built‑in GPRS and GPS modules. This integrated design eliminates the need for external GPRS dongles, providing seamless integration with IoT platforms and other software systems – delivering higher reliability and a more streamlined hardware footprint.

6. Application Fields

The YIGU Sensor YGY-QXM is widely applicable across a diverse range of industries and scenarios, including:

• Meteorology & Climatology

• Environmental Protection & Air Quality Monitoring

• Aviation & Airport Operations

• Agriculture, Forestry & Ecology

• Hydrology & Marine Research

• Military & Defense

• Warehousing & Logistics

• Scientific Research & Education

Its versatility and robust design make it the ideal choice for any field professional requiring precise, multi‑parameter weather data in a portable, easy‑to‑use package.

▶ Functional Features

1. Core Measurement & Display

• 240×160 dot-matrix LCD with backlight displays up to 9 parameters: temperature, humidity, wind speed, wind direction, air pressure, wave height, GPS latitude/longitude, and altitude;

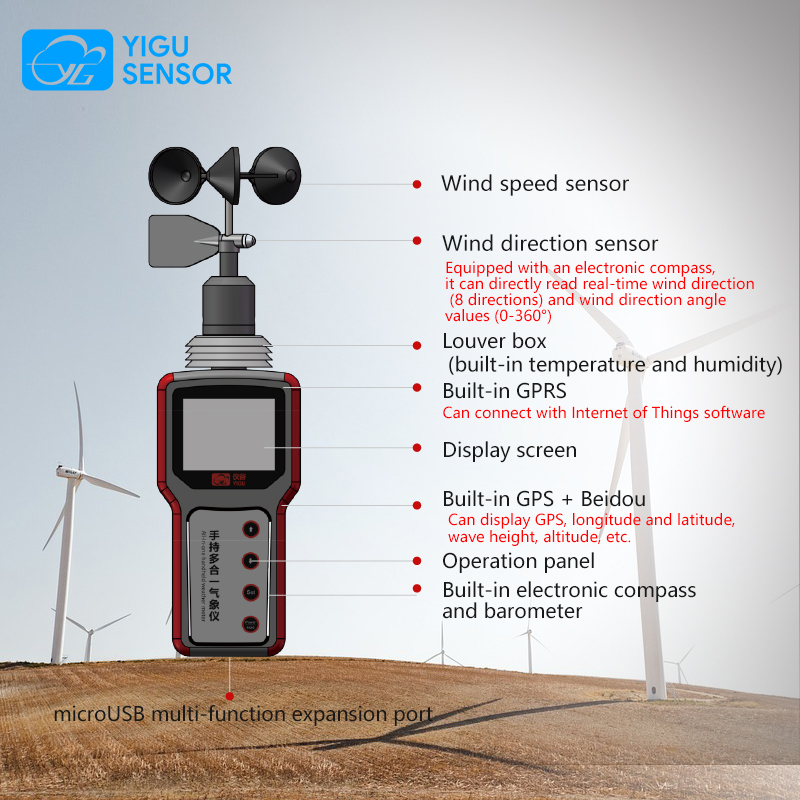

• Built-in electronic compass enables direct real-time reading of wind direction (8 directions) and wind angle (0–360°) without geographic reference setting — a first in compact handheld weather stations.



2. Data Storage & Export

• Stores up to 80,000 data records; logging interval adjustable from 1 to 240 minutes;

• Universal USB port for convenient data download to PC.



3. Smart Alarm Function

• Audible and visual alarm monitors temperature, humidity, air pressure, and wind speed;

• Triggers alert when any parameter exceeds preset upper/lower limits; alarm stops upon pressing any key;

• Individual parameters can be enabled or disabled for alarm monitoring.



4. Communication & Positioning

• Supports GPS + BeiDou satellite positioning;

• Built-in GPRS module for IoT platform connectivity (optional).



5. Power Supply Options

• Default: four AAA batteries (1.5V each) with low-power design;

• Optional: rechargeable lithium battery;

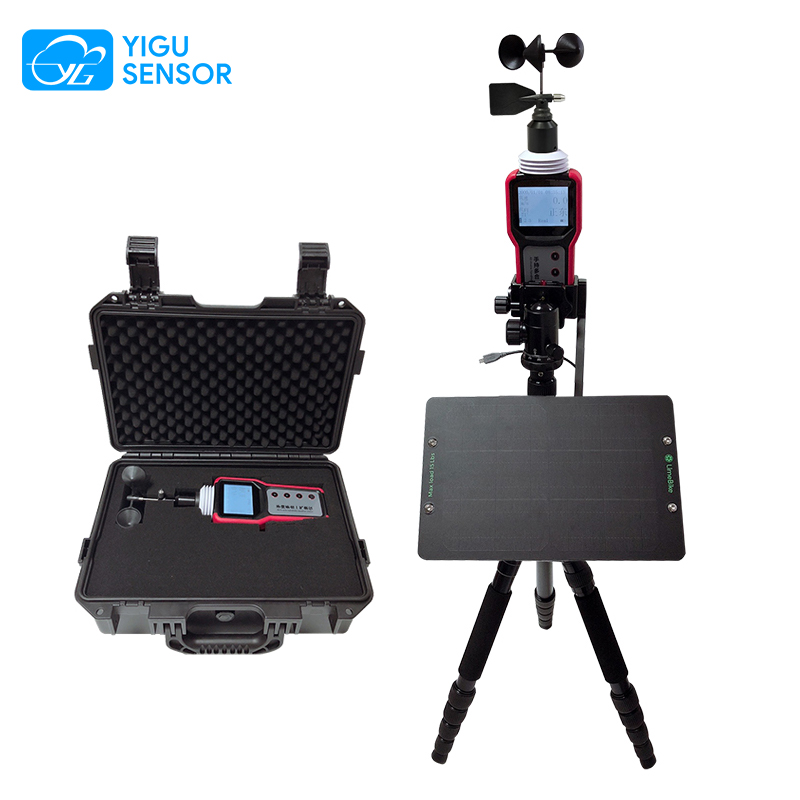

• Optional solar power supply system for extended field operation;

• Energy-saving settings: adjustable backlight, display timeout, and auto shutdown; automatic power-off under low battery.



6. Portable Accessories (Optional)

• Dedicated portable meteorological stand for easy transport and installation;

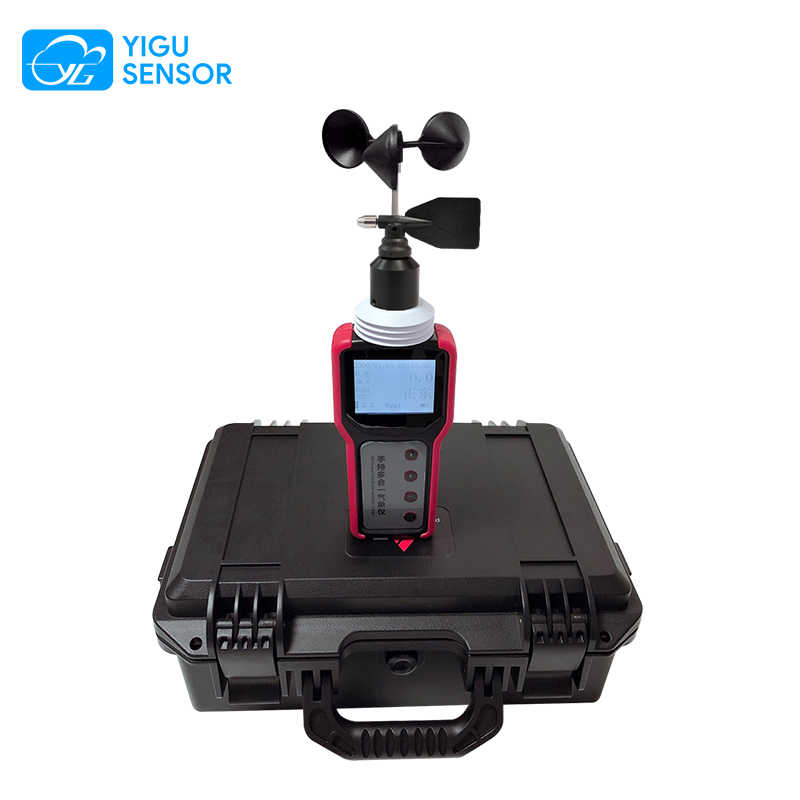

• Professional-grade waterproof carrying case for protection and portability.



7. Quality Assurance

• Product has passed wind tunnel tests, temperature & humidity calibration, and high/low temperature environment testing conducted by a certified metrology institute.



8. Language Support

• System language switchable between Chinese and English.

▶ Technical Parameter

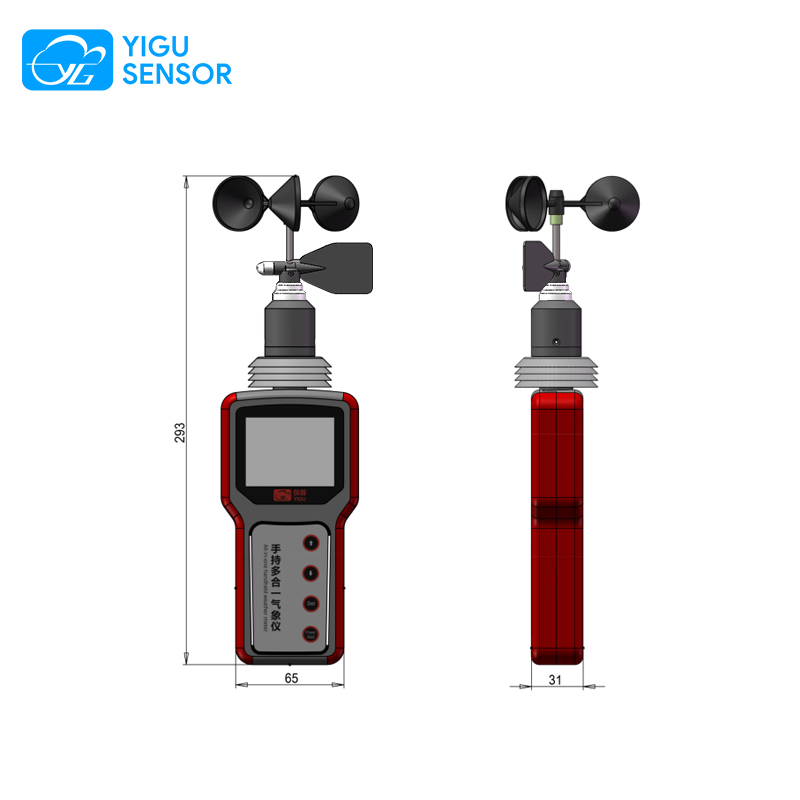

▶ Product size
