Product Introduction

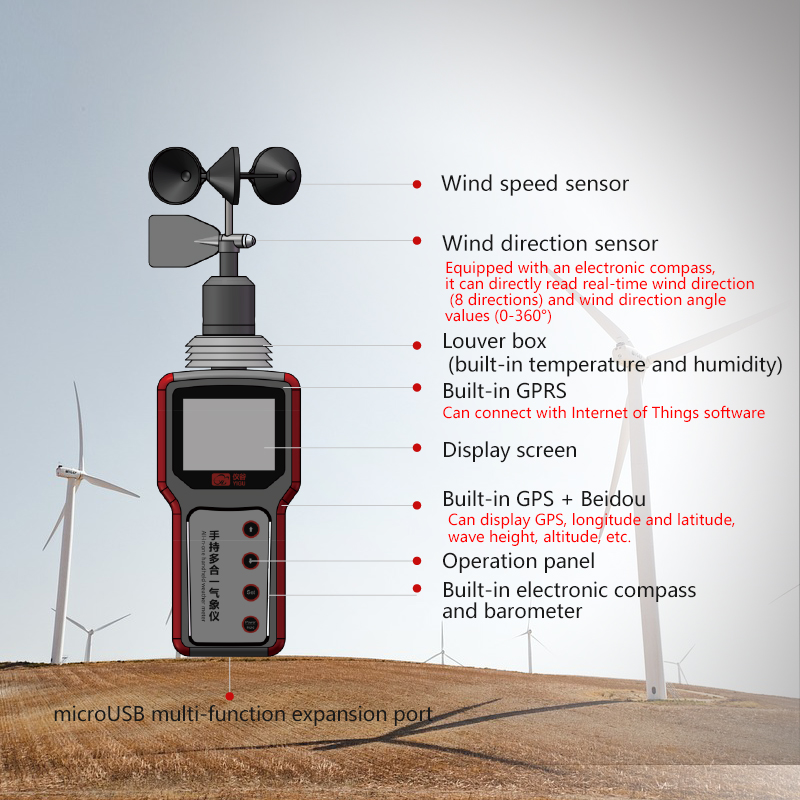

The hand-held all-in-one meteorological instrument is a movable meteorological observation instrument that is easy to carry, easy to operate, and integrates multiple meteorological elements. The product adopts precision sensors and smart chips, which can accurately measure, record and store wind speed, direction, air pressure, temperature, humidity, wave height, GPS and other environmental factors at the same time. The instrument is equipped with a wind direction sensor and an electronic compass, which can directly measure and display 8 directions and 0-360° wind direction data in real time. Real-time data measurement of each element can be carried out, and the average data and maximum data of each element can also be read. The instrument also has an acousto-optic alarm function. The alarm function can monitor the four elements of wind speed, air pressure, temperature and humidity. When the corresponding real-time data exceeds the set upper and lower limit, the instrument performs acousto-optic alarm.

 Handheld weather station batteries can work for a long time under energy-saving conditions. Different energy-saving schemes are implemented in different working environments, including turning off the backlight, closing the screen, automatically shutting down, and automatically shutting down when the power is low. In addition, special weather brackets and solar power supply systems can be selected to meet the long-term unattended observation of outdoor fixed positions. The built-in large-capacity FLASH memory chip can store meteorological data for at least one year; the universal USB communication interface can download data to the computer using the supporting USB cable and weather station software, which is convenient for users to further process and analyze meteorological data. Optional built-in GPRS and GPS modules, which can be conveniently docked with Internet of Things software or other software, eliminating external GPRS modules, high integration and good reliability.

 Application fields: This instrument can be widely used in meteorology, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.

Functional Features

1、Industry pioneer: The small handheld gas station can achieve electronic display of wind direction and storage of historical data. It also comes with an electronic compass, allowing direct reading of real-time wind direction (8 directions) and wind direction angle values (0-360°) without setting a geographic orientation reference;

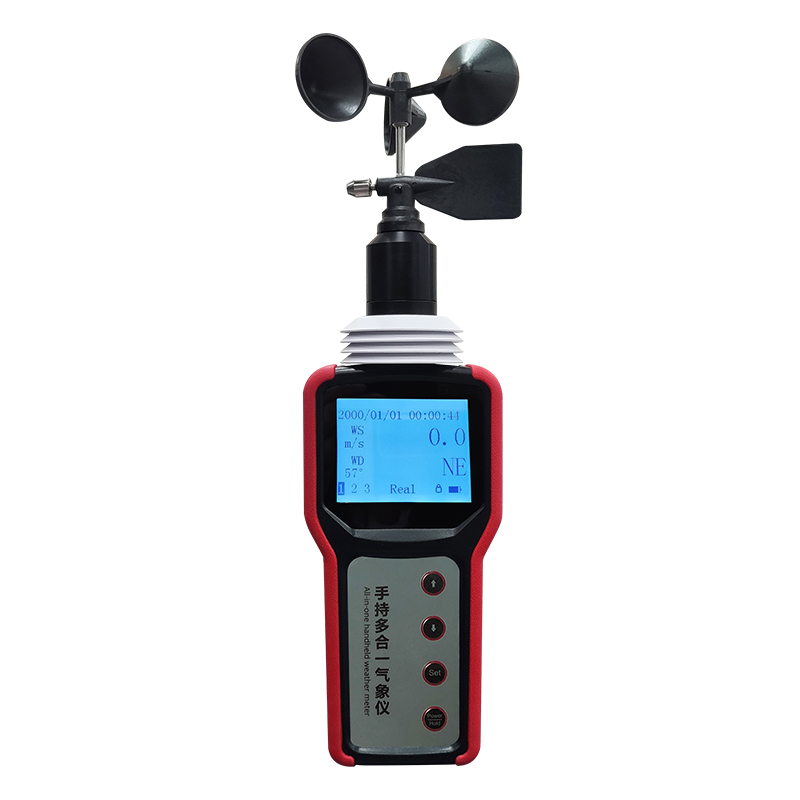

2、The 240×160 dot matrix LCD screen with backlight can display up to 9 parameters, including atmospheric temperature, humidity, wind speed, wind direction, air pressure, wave height, GPS latitude and longitude, and altitude;
Large-capacity data storage, capable of storing up to 80,000 pieces of meteorological data (data recording intervals can be set between 1 and 240 minutes);

3、Universal USB communication interface for convenient data download;

4、It can obtain GPS + Beidou information through satellite positioning, supports GPRS communication, and can connect with IoT software;

5、The system language can be switched between Chinese and English;

6、Multiple power supply functions, with four standard 7# 5V dry batteries as the default power source; rechargeable lithium battery can also be optionally equipped as a power source;

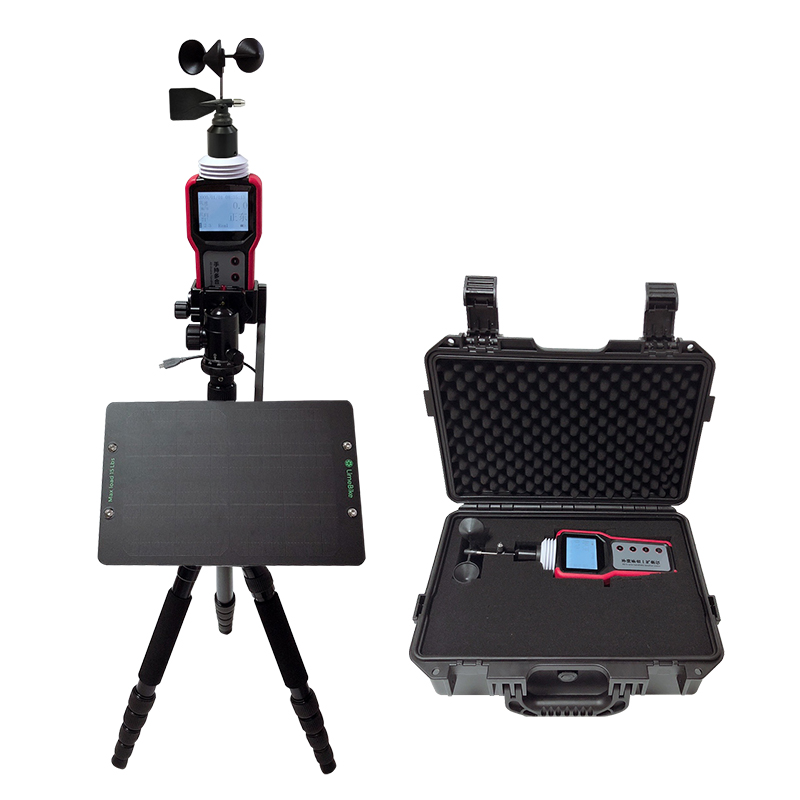

7、Equipped with a portable solar power supply system, it can support long-term field work;

8、Dedicated portable meteorological stand, easy to carry and install;

9、Low-power design, long standby time, energy saving through setting backlight, display screen off time, and automatic shutdown time; automatic shutdown when battery power is insufficient;

10、Equipped with an alarm function, it allows for the setting of alarm parameters for four elements: temperature, humidity, air pressure, and wind speed. When any of these four elements exceeds its corresponding upper or lower limit, an audible and visual alarm will sound until any button is pressed. Additionally, the alarm function for any individual element can be switched on or off;

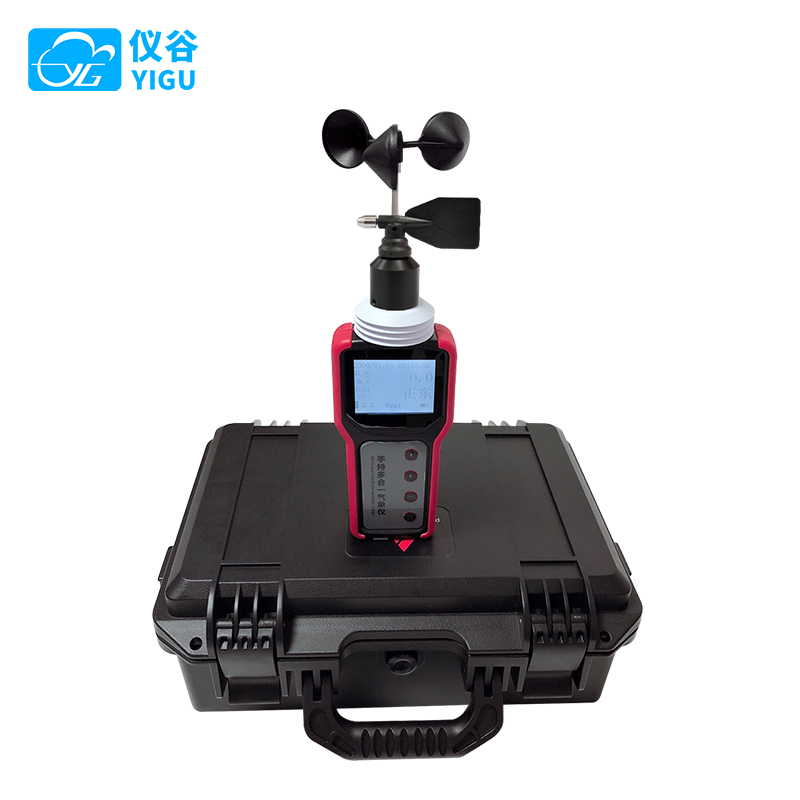

11、Professional and high-grade waterproof packaging box not only protects the instrument but also facilitates portability (optional);

12、The product has passed the wind tunnel test, temperature and humidity calibration, as well as high and low temperature environment testing conducted by the metrology institute;

Technical Parameter

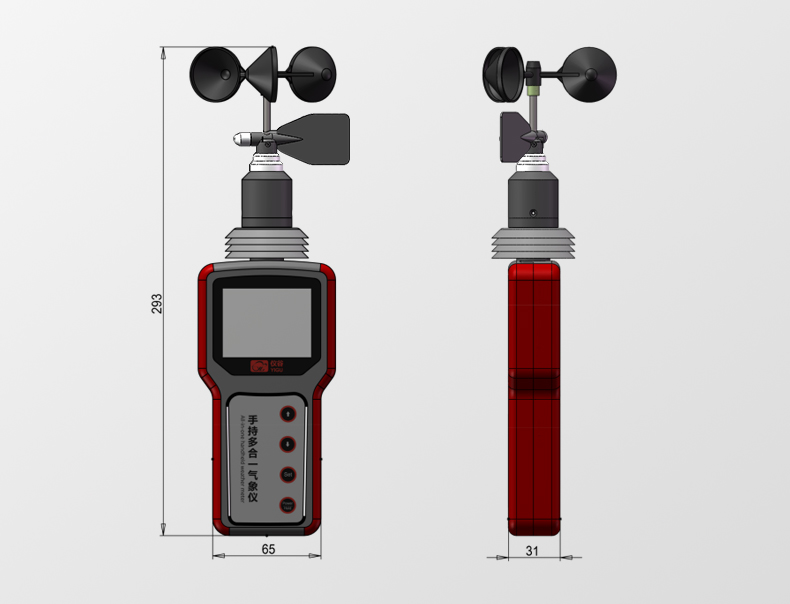

Product size
